Phase Change Materials
PTM5000

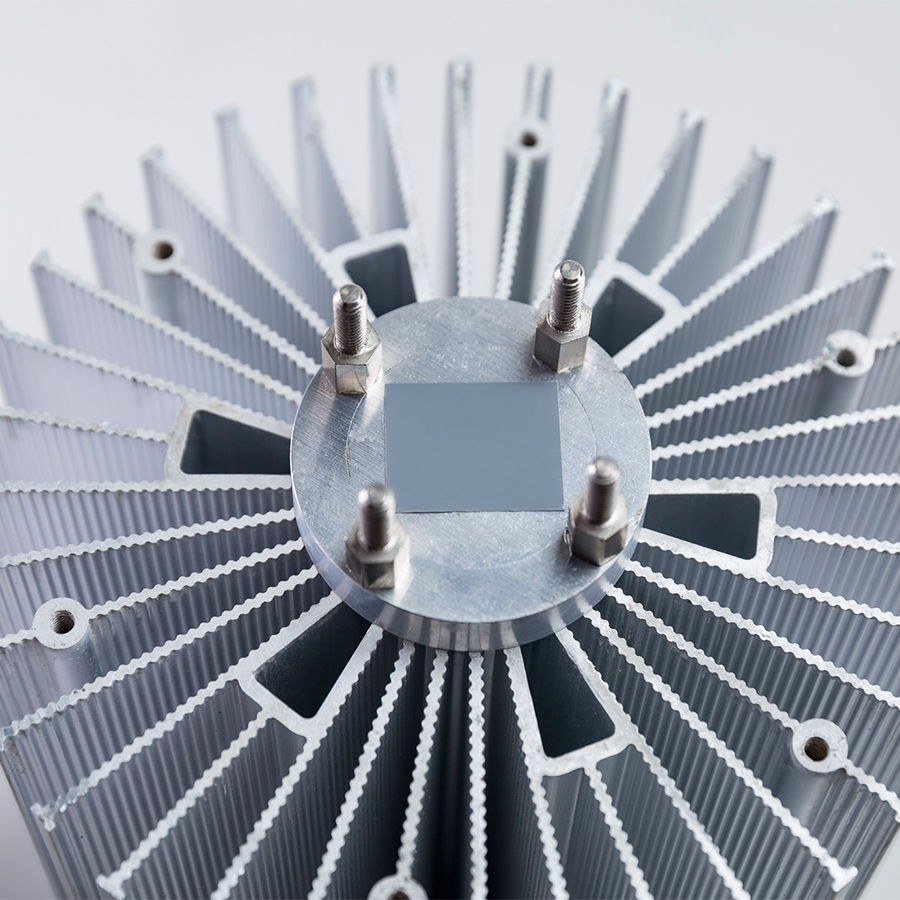

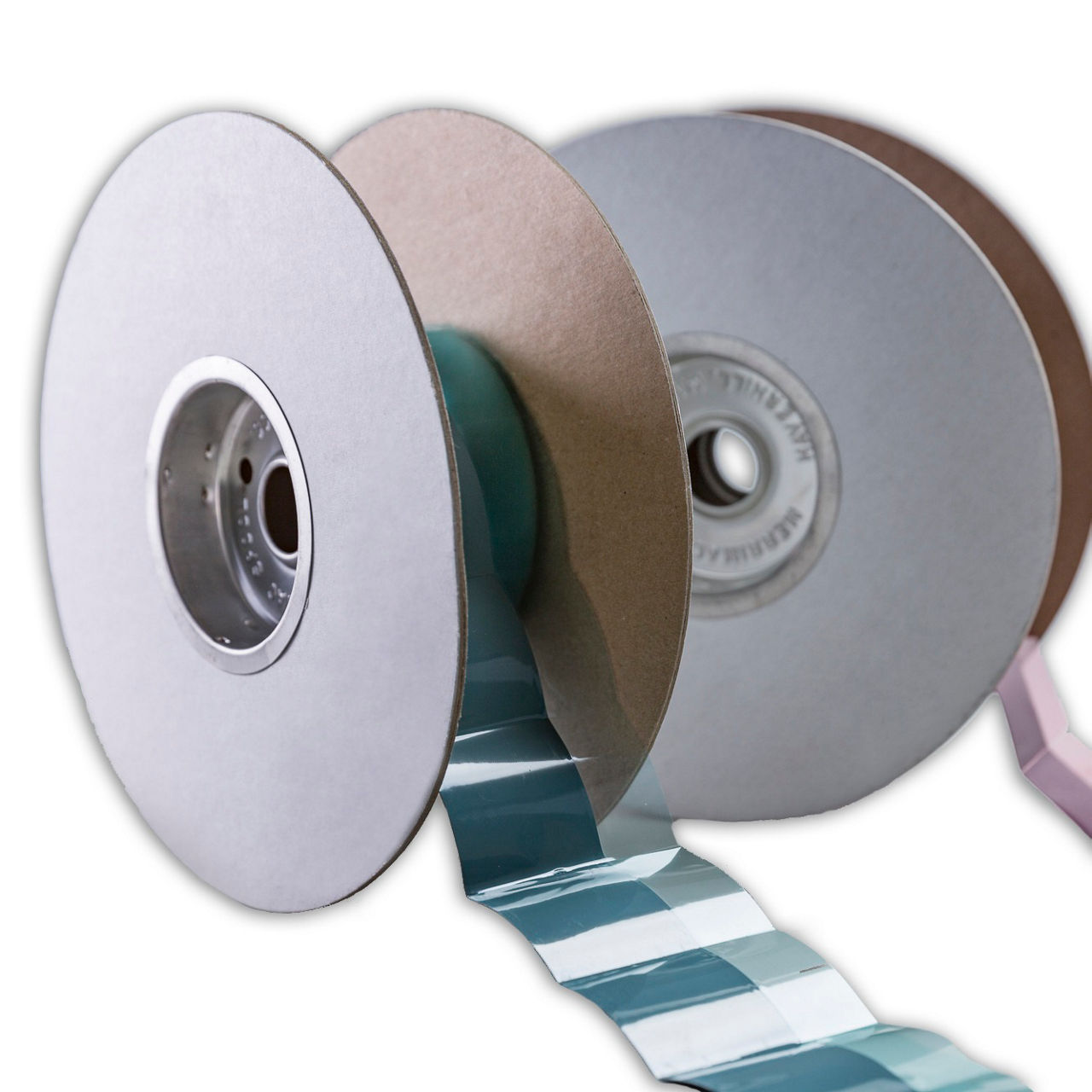

PTM5000 is a Phase Change Pad with a Thermal Impedance of 0.06 – 0.08 (°C cm²/w), Thermal Conductivity of 4.4 (w/mk) and Specific Gravity of 2.3 (g/cm³).
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
PTM5000 is Solstice's thermally conductive phase change material in pad form. It is designed to minimize thermal resistance at interfaces and maintain extremely stable performance through reliability testing for long product life applications.
PTM5000 has a Thermal conductivity of 3.5 - 4.5 (W/m·K) depending on the bondline thickness. It is based on a robust polymer PCM structure that exhibits excellent wetting properties during typical operating temperature ranges, resulting in very low surface contact resistance. The proprietary material provides superior reliability and maintains low thermal impedance (0.06-0.08), making it desirable for high-performance integrated circuit devices. Clamping pressure and temperature are suggested to achieve a minimum bondline thickness for the best performance. All information for thermal impedance is collected after the product is fully phase-changed without a shim.
PTM5000 has a Thermal conductivity of 3.5 - 4.5 (W/m·K) depending on the bondline thickness. It is based on a robust polymer PCM structure that exhibits excellent wetting properties during typical operating temperature ranges, resulting in very low surface contact resistance. The proprietary material provides superior reliability and maintains low thermal impedance (0.06-0.08), making it desirable for high-performance integrated circuit devices. Clamping pressure and temperature are suggested to achieve a minimum bondline thickness for the best performance. All information for thermal impedance is collected after the product is fully phase-changed without a shim.
Typical Properties
Physical Properties
- Bond-Line Thickness (BLT)
- 0.038
- Color
- Grey
- Shelf Life
- 12 months
- Specific Gravity
- 2.3 g/cm3, Test Method ASTM D374
- Thickness (mm)
- 0.2
- 0.25
- 0.3
- 0.4
- 0.5
- Viscosity
- N/A
- Liner Color
- Pink
- Format
- Pad
Thermal Properties
- Thermal Conductivity
- 4.4 W/m-K, Test Method ASTM D5470
- Thermal Impedance
- 0.06-0.08 at no shim °C cm²/w, Test Method ASTM D5470 Modified
Electrical Properties
- Volume Resistivity
- 2.1x1014 ohm-cm, Test Method ASTM D259
General Information
- Application
- CPU
- GPU
- Thin Bondline
- Typical Uses
- Action Camera
- Base Station
- Gaming
- IGBT
- Lighting
- Onboard Electronics
- Power Control Unit
- Router
- SSD
- Smartphones
- Switch
- VGA Cards
- Sub-segment
- AI/HPC
- Inverter
- Notebook
- PC
- Server
- Tablet
- Industry
- Consumer Electronics
Other
- Other Notes
- Pads available in sheets and rolls
Physical Properties
- Bond-Line Thickness (BLT)
- 0.038
- Color
- Grey
- Shelf Life
- 12 months
- Specific Gravity
- 2.3 g/cm3, Test Method ASTM D374
- Thickness (mm)
- 0.2
- 0.25
- 0.3
- 0.4
- 0.5
- Viscosity
- N/A
- Liner Color
- Pink
- Format
- Pad
Thermal Properties
- Thermal Conductivity
- 4.4 W/m-K, Test Method ASTM D5470
- Thermal Impedance
- 0.06-0.08 at no shim °C cm²/w, Test Method ASTM D5470 Modified
Electrical Properties
- Volume Resistivity
- 2.1x1014 ohm-cm, Test Method ASTM D259
General Information
- Application
- CPU
- GPU
- Thin Bondline
- Typical Uses
- Action Camera
- Base Station
- Gaming
- IGBT
- Lighting
- Onboard Electronics
- Power Control Unit
- Router
- SSD
- Smartphones
- Switch
- VGA Cards
- Sub-segment
- AI/HPC
- Inverter
- Notebook
- PC
- Server
- Tablet
- Industry
- Consumer Electronics
Other
- Other Notes
- Pads available in sheets and rolls
- Color : Grey
- Bond-Line Thickness (BLT) : 0.038
- Thermal Conductivity : 4.4 W/m-K, Test Method ASTM D5470
- Thermal Impedance : 0.06-0.08 at no shim °C cm²/w, Test Method ASTM D5470 Modified
- Specific Gravity : 2.3 g/cm3, Test Method ASTM D374
- Thickness (mm) : 0.2|0.25|0.3|0.4|0.5
- Liner Color : Pink
- Shelf Life : 12 months
- Viscosity : N/A
- Format : Pad
- Volume Resistivity : 2.1x1014 ohm-cm, Test Method ASTM D259
- Typical Uses : Action Camera|Base Station|Gaming|IGBT|Lighting|Onboard Electronics|Power Control Unit|Router|SSD|Smartphones|Switch|VGA Cards
- Sub-segment : AI/HPC|Inverter|Notebook|PC|Server|Tablet
- Application : CPU|GPU|Thin Bondline
- Industry : Consumer Electronics
- Other Notes : Pads available in sheets and rolls
