Phase Change Materials

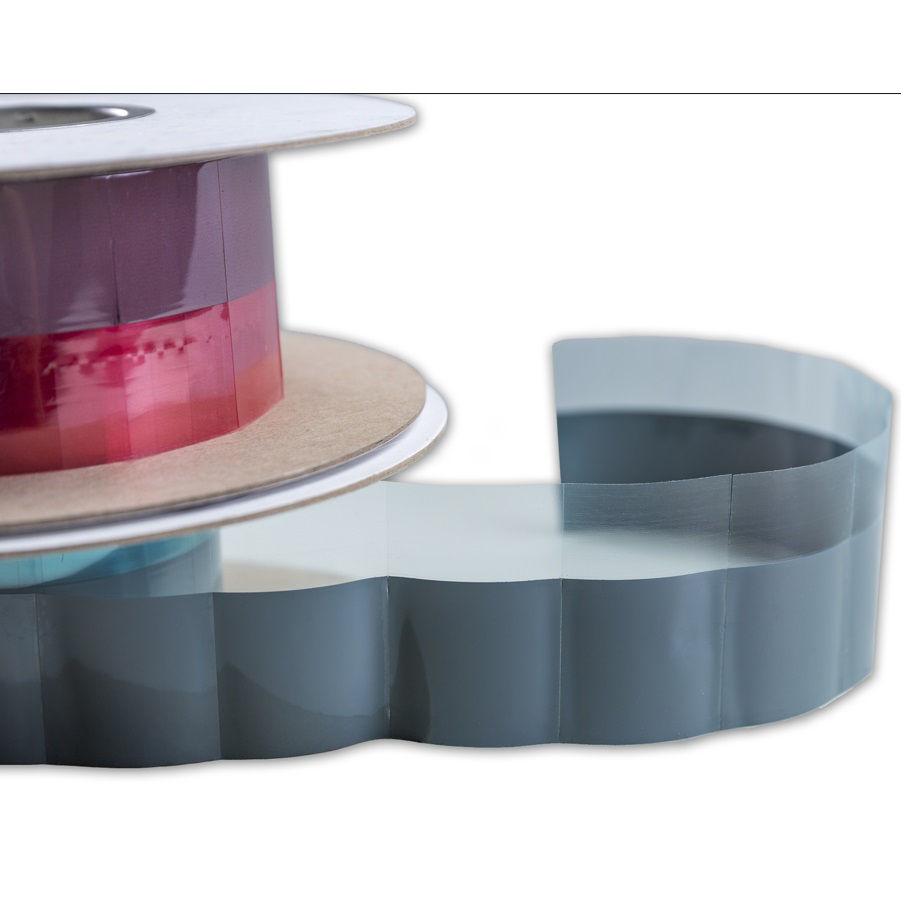

PTM7000
PTM7000 is a Phase Change Pad with a Thermal Impedance of 0.04 - 0.07 (°C cm²/w), Thermal Conductivity of 6.5 (w/mk) and Specific Gravity of 2.7 (g/cm³)
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
PTM7000 is designed to minimize thermal resistance at interfaces and maintain extremely stable performance through reliability testing, which is required for long product life applications. Like all phase change materials, it has stable thermal impedance across accelerated aging tests and does not display bleeding, pumping, or flow out.
PTM7000 has a thermal conductivity of 6.5 (W/m·K) depending on the bondline thickness. It is based on a robust polymer PCM structure that exhibits excellent wetting properties during typical operating temperature ranges, resulting in very low surface contact resistance. The usual temperature range is -40°C to 125°C. This proprietary material provides superior reliability and maintains low thermal impedance (0.06), making it desirable for high-performance integrated circuit devices. Regarding breakdown voltage, phase change materials are typically around 5000V/mm, which is highly thickness-dependent. An initial "unphased" 0.2mm pad will have a different BV than the final 30/40um bondline.
PTM7000 has a thermal conductivity of 6.5 (W/m·K) depending on the bondline thickness. It is based on a robust polymer PCM structure that exhibits excellent wetting properties during typical operating temperature ranges, resulting in very low surface contact resistance. The usual temperature range is -40°C to 125°C. This proprietary material provides superior reliability and maintains low thermal impedance (0.06), making it desirable for high-performance integrated circuit devices. Regarding breakdown voltage, phase change materials are typically around 5000V/mm, which is highly thickness-dependent. An initial "unphased" 0.2mm pad will have a different BV than the final 30/40um bondline.
Typical Properties
Physical Properties
- Bond-Line Thickness (BLT)
- 0.038
- Color
- Grey
- Shelf Life
- 12 months
- Specific Gravity
- 2.7 g/cm3, Test Method ASTM D374
- Thickness (mm)
- 0.2
- 0.25
- 0.3
- 0.4
- 0.5
- Viscosity
- N/A
- Liner Color
- Light Blue
- Format
- Pad
Thermal Properties
- Thermal Conductivity
- 6.5 W/m-K, Test Method ASTM D5470
- Thermal Impedance
- 0.04-0.07 at no shim °C cm²/w, Test Method ASTM D5470 Modified
Electrical Properties
- Volume Resistivity
- 2.1x1014 ohm-cm, Test Method ASTM D259
General Information
- Application
- Base Station
- CPU
- GPU
- IGBT Module
- Memory
- Optical
- Power Device
- Switch
- Thin Bondline
- Transceiver
- Key Features
- High Reliability
- Low TI
- Typical Uses
- IGBT
- Lighting
- Power control unit, inverter, onboard electronics
- Servers, supercomputing, video graphic array (VGA) cards, AI, GPU/CPU/Desktop, solid state drives (SSD)
- Switches, routers, base stations
- Tablets, gaming, notebooks, smartphones, action cameras
- Sub-segment
- ADAS
- Inverter
- Networks
- Industry
- Automotive
- Technology and Telecommunications
Other
- Other Notes

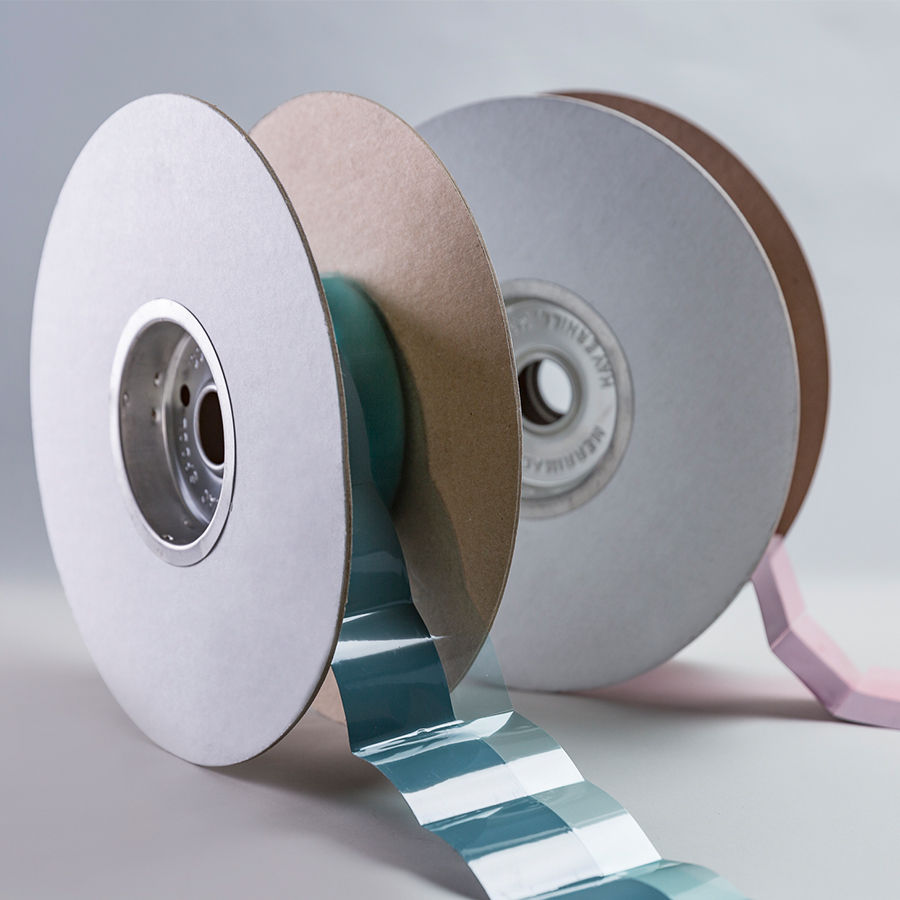

- Pads available in sheets and rolls
Physical Properties
- Bond-Line Thickness (BLT)
- 0.038
- Color
- Grey
- Shelf Life
- 12 months
- Specific Gravity
- 2.7 g/cm3, Test Method ASTM D374
- Thickness (mm)
- 0.2
- 0.25
- 0.3
- 0.4
- 0.5
- Viscosity
- N/A
- Liner Color
- Light Blue
- Format
- Pad
Thermal Properties
- Thermal Conductivity
- 6.5 W/m-K, Test Method ASTM D5470
- Thermal Impedance
- 0.04-0.07 at no shim °C cm²/w, Test Method ASTM D5470 Modified
Electrical Properties
- Volume Resistivity
- 2.1x1014 ohm-cm, Test Method ASTM D259
General Information
- Application
- Base Station
- CPU
- GPU
- IGBT Module
- Memory
- Optical
- Power Device
- Switch
- Thin Bondline
- Transceiver
- Key Features
- High Reliability
- Low TI
- Typical Uses
- IGBT
- Lighting
- Power control unit, inverter, onboard electronics
- Servers, supercomputing, video graphic array (VGA) cards, AI, GPU/CPU/Desktop, solid state drives (SSD)
- Switches, routers, base stations
- Tablets, gaming, notebooks, smartphones, action cameras
- Sub-segment
- ADAS
- Inverter
- Networks
- Industry
- Automotive
- Technology and Telecommunications
Other
- Other Notes
- Pads available in sheets and rolls
- Color : Grey
- Bond-Line Thickness (BLT) : 0.038
- Thermal Conductivity : 6.5 W/m-K, Test Method ASTM D5470
- Thermal Impedance : 0.04-0.07 at no shim °C cm²/w, Test Method ASTM D5470 Modified
- Specific Gravity : 2.7 g/cm3, Test Method ASTM D374
- Thickness (mm) : 0.2|0.25|0.3|0.4|0.5
- Liner Color : Light Blue
- Shelf Life : 12 months
- Viscosity : N/A
- Format : Pad
- Volume Resistivity : 2.1x1014 ohm-cm, Test Method ASTM D259
- Typical Uses : IGBT|Lighting|Power control unit, inverter, onboard electronics|Servers, supercomputing, video graphic array (VGA) cards, AI, GPU/CPU/Desktop, solid state drives (SSD)|Switches, routers, base stations|Tablets, gaming, notebooks, smartphones, action cameras
- Key Features : High Reliability|Low TI
- Sub-segment : ADAS|Inverter|Networks
- Application : Base Station|CPU|GPU|IGBT Module|Memory|Optical|Power Device|Switch|Thin Bondline|Transceiver
- Industry : Automotive|Technology and Telecommunications
- Other Notes : Pads available in sheets and rolls
