Phosphorescent Pigments

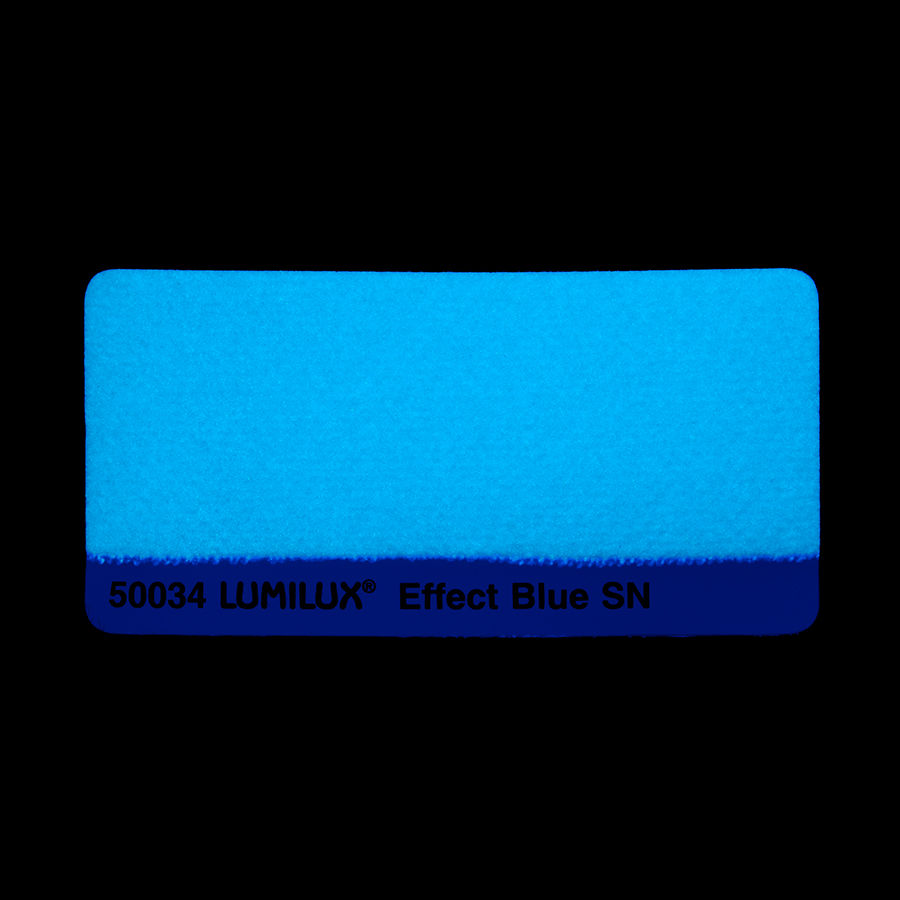

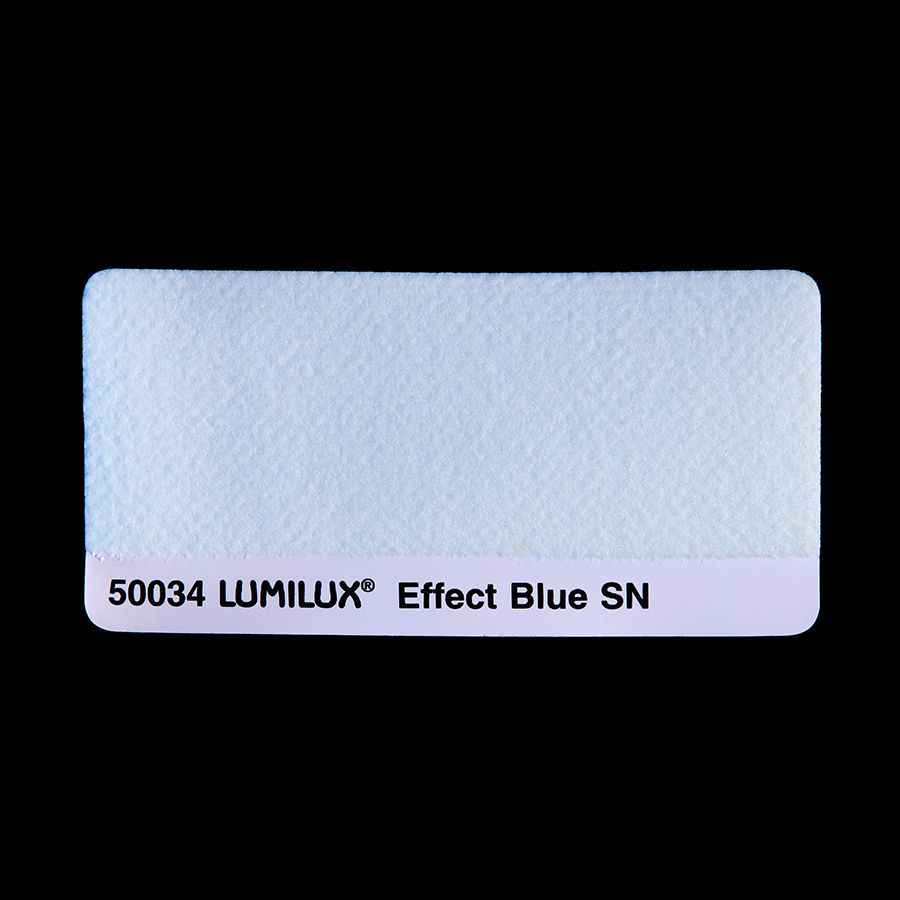

Lumilux® Effect Blue SN (50034)
Main use: Afterglow plastic sheets, silk screen printing paints, injection molding
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Lumilux SN-series phosphorescent pigments emit light long after the source has been removed. They are strontium aluminate-based, and meet UL and CE safety standards.
Solstice Lumilux™ pigments have been a mainstay of the safety and security industry for more than four decades, consistently meeting the everchanging landscape of rigorous brightness standards required in safety, signage and authentication applications.We offer the industry’s largest portfolio of phosphorescent and fluorescent pigments and taggants that can be used in a wide variety of applications, including:
• Safety and signage
• Automated sorting processes
• Watch dials
• Injection-molded toys and novelty items
• Paints and coatings
• Authentication applications
• Other specialty applications
Solstice Lumilux™ pigments have been a mainstay of the safety and security industry for more than four decades, consistently meeting the everchanging landscape of rigorous brightness standards required in safety, signage and authentication applications.We offer the industry’s largest portfolio of phosphorescent and fluorescent pigments and taggants that can be used in a wide variety of applications, including:
• Safety and signage
• Automated sorting processes
• Watch dials
• Injection-molded toys and novelty items
• Paints and coatings
• Authentication applications
• Other specialty applications
Specifications
General Information
- Application
- PUR and epoxy resins
- Plastics
- Screen inks
- Solvent-based paints
- Water-based paints
- Compatibility
- Insoluble in water, alkalies, organic solvents and decomposed by acids
- Maximum Particle Size
- 60, PSD50
- Particle Texture/Size
- Very coarse (D50 >50 µm)
- Product Type
- Luminescent/Phosphorescent Pigments
- Typical Uses
- Automotive trunk releases
- Fire brigade equipment
- Hard hats
- Safety signs
Physical Properties
- Brightness
- 150 after 5 minutes
- 6 after 60 minutes
- 80 after 10 minutes
- Chemical Composition
- Alkaline Earth Silicate
- Color
- Yellowish
- Density
- 3.5-4 g/cm3
- Luminance DIN 67510-1
- 14 mcd/m2 after 60 minutes
- 150 mcd/m2 after 5 minutes
- 80 mcd/m2 after 10 minutes
- Particle Size Distribution
- 60.0μm
- Phosphorescence Color
- Blue
- Physical form
- Powder
- Screen Analysis
- max. 1 % oversized particles on 125μm testing screen
- Solubility
- Insoluble
- Solubility in Water
- Insoluble
General Information
- Application
- PUR and epoxy resins
- Plastics
- Screen inks
- Solvent-based paints
- Water-based paints
- Compatibility
- Insoluble in water, alkalies, organic solvents and decomposed by acids
- Maximum Particle Size
- 60, PSD50
- Particle Texture/Size
- Very coarse (D50 >50 µm)
- Product Type
- Luminescent/Phosphorescent Pigments
- Typical Uses
- Automotive trunk releases
- Fire brigade equipment
- Hard hats
- Safety signs
Physical Properties
- Brightness
- 150 after 5 minutes
- 6 after 60 minutes
- 80 after 10 minutes
- Chemical Composition
- Alkaline Earth Silicate
- Color
- Yellowish
- Density
- 3.5-4 g/cm3
- Luminance DIN 67510-1
- 14 mcd/m2 after 60 minutes
- 150 mcd/m2 after 5 minutes
- 80 mcd/m2 after 10 minutes
- Particle Size Distribution
- 60.0μm
- Phosphorescence Color
- Blue
- Physical form
- Powder
- Screen Analysis
- max. 1 % oversized particles on 125μm testing screen
- Solubility
- Insoluble
- Solubility in Water
- Insoluble
- Particle Texture/Size : Very coarse (D50 >50 µm)
- Maximum Particle Size : 60, PSD50
- Compatibility : Insoluble in water, alkalies, organic solvents and decomposed by acids
- Typical Uses : Automotive trunk releases|Fire brigade equipment|Hard hats|Safety signs
- Product Type : Luminescent/Phosphorescent Pigments
- Application : PUR and epoxy resins|Plastics|Screen inks|Solvent-based paints|Water-based paints
- Particle Size Distribution : 60.0μm
- Phosphorescence Color : Blue
- Luminance DIN 67510-1 : 14 mcd/m2 after 60 minutes|150 mcd/m2 after 5 minutes|80 mcd/m2 after 10 minutes
- Chemical Composition : Alkaline Earth Silicate
- Solubility in Water : Insoluble
- Screen Analysis : max. 1 % oversized particles on 125μm testing screen
- Physical form : Powder
- Solubility : Insoluble
- Brightness : 150 after 5 minutes|6 after 60 minutes|80 after 10 minutes
- Density : 3.5-4 g/cm3
- Color : Yellowish
