Phosphorescent Pigments

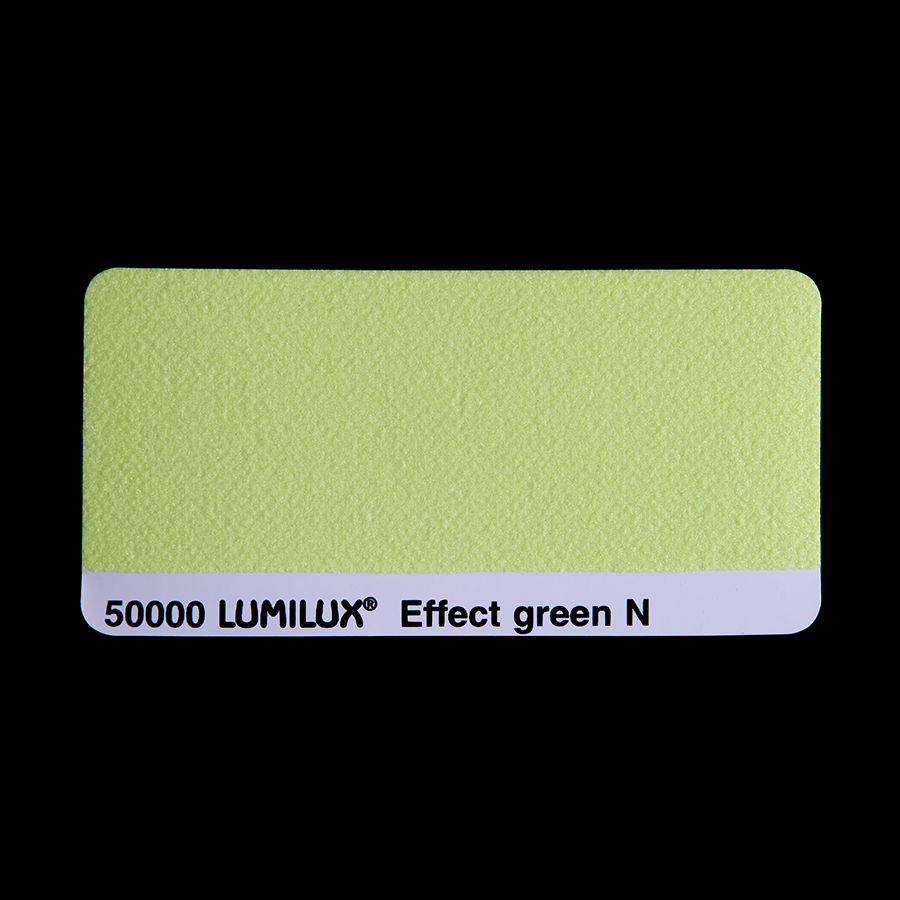

Lumilux® Effect Green N (50000)
Zinc sulfide-based green fluorescent N series pigment; the classic yellow-green afterglow grade.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
N-Series: The Original Glow That Never Sleeps.

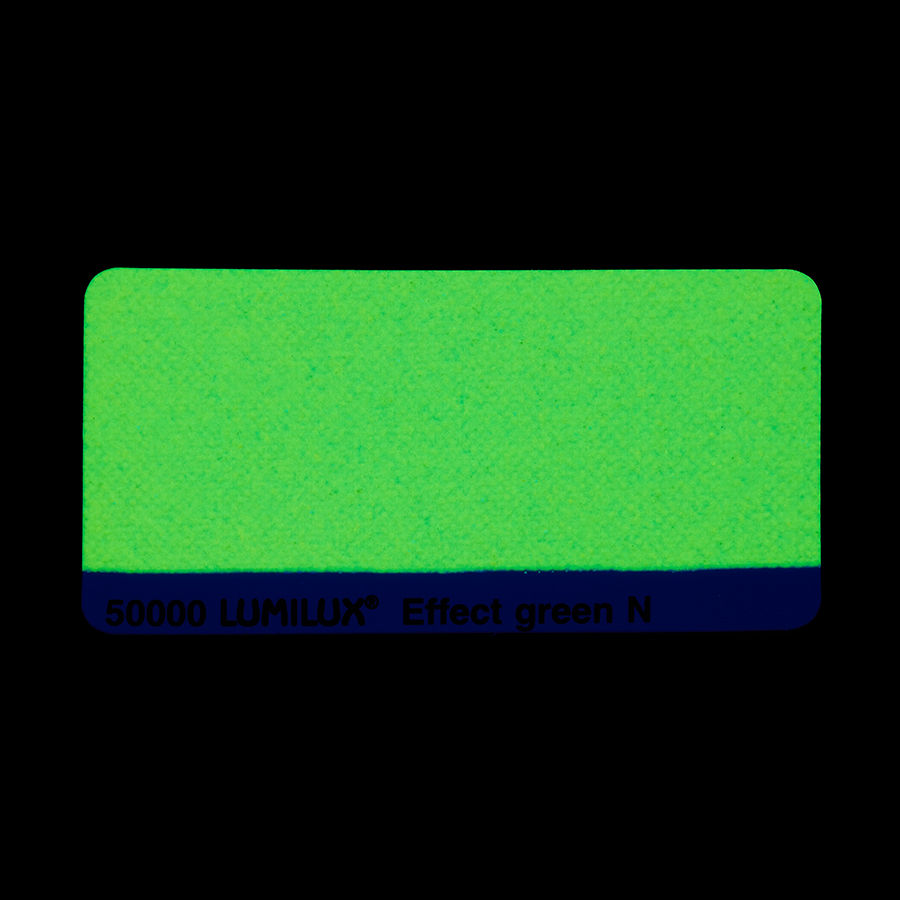

The LUMILUX® N-Series phosphorescent pigments capture energy from daylight, room light or UV illumination and release it later as a visible glow. Based on proven zinc sulfide technology, the range offers quick charging, dependable afterglow and broad processing flexibility for inks, coatings, plastics and speciality products.
Available in different grades and particle sizes, the N-Series can be tailored for screen printing, injection moulding, paints and coatings. It supports safety signage, emergency guidance systems, low-light wayfinding graphics, toys, promotional items, decorative components and functional designs where trusted glow performance adds visibility, differentiation and lasting impact.
The LUMILUX® N-Series phosphorescent pigments capture energy from daylight, room light or UV illumination and release it later as a visible glow. Based on proven zinc sulfide technology, the range offers quick charging, dependable afterglow and broad processing flexibility for inks, coatings, plastics and speciality products.
Available in different grades and particle sizes, the N-Series can be tailored for screen printing, injection moulding, paints and coatings. It supports safety signage, emergency guidance systems, low-light wayfinding graphics, toys, promotional items, decorative components and functional designs where trusted glow performance adds visibility, differentiation and lasting impact.
Typical Properties
General Information
- Application
- Enamels
- Glassware
- Plastics
- Screen inks
- Solvent-based paints
- Water-based paints
- Compatibility
- Alkalies
- Insoluble in water
- Organic solvents and decomposed by acids
- Maximum Particle Size
- 46, PSD50
- Particle Texture/Size
- Coarse (D50 30 - 40 µm)
- Product Type
- Luminescent/Phosphorescent Pigments
- Typical Uses
- Buttons
- Ceramics
- Enamel
- Sporting goods
- Textile printing
- Toys
Physical Properties
- Brightness
- 28 after 10 minutes
- 3.1 after 60 minutes
- 66 after 5 minutes
- Chemical Composition
- ZnS: Cu
- Color
- Yellow-green
- Density
- 4.1 g/cm3
- Luminance DIN 67510-1
- 28 mcd/m2 after 10 min
- 3.1 mcd/m2 after 60 minutes
- 66 mcd/m2 after 5 minutes
- Particle Size Distribution
- 37 μm
- pH
- >11 of a waterbased slurry
- Phosphorescence Color
- Green
- Physical form
- Powder
- Screen Analysis
- 1% oversized particles on 125 μm testing screen
- Solubility
- Insoluble
- Solubility in Water
- Insoluble
Safety Information
- Incompatible Materials
- Strong acids
General Information
- Application
- Enamels
- Glassware
- Plastics
- Screen inks
- Solvent-based paints
- Water-based paints
- Compatibility
- Alkalies
- Insoluble in water
- Organic solvents and decomposed by acids
- Maximum Particle Size
- 46, PSD50
- Particle Texture/Size
- Coarse (D50 30 - 40 µm)
- Product Type
- Luminescent/Phosphorescent Pigments
- Typical Uses
- Buttons
- Ceramics
- Enamel
- Sporting goods
- Textile printing
- Toys
Physical Properties
- Brightness
- 28 after 10 minutes
- 3.1 after 60 minutes
- 66 after 5 minutes
- Chemical Composition
- ZnS: Cu
- Color
- Yellow-green
- Density
- 4.1 g/cm3
- Luminance DIN 67510-1
- 28 mcd/m2 after 10 min
- 3.1 mcd/m2 after 60 minutes
- 66 mcd/m2 after 5 minutes
- Particle Size Distribution
- 37 μm
- pH
- >11 of a waterbased slurry
- Phosphorescence Color
- Green
- Physical form
- Powder
- Screen Analysis
- 1% oversized particles on 125 μm testing screen
- Solubility
- Insoluble
- Solubility in Water
- Insoluble
Safety Information
- Incompatible Materials
- Strong acids
- Application : Enamels|Glassware|Plastics|Screen inks|Solvent-based paints|Water-based paints
- Typical Uses : Buttons|Ceramics|Enamel|Sporting goods|Textile printing|Toys
- Product Type : Luminescent/Phosphorescent Pigments
- Particle Texture/Size : Coarse (D50 30 - 40 µm)
- Maximum Particle Size : 46, PSD50
- Compatibility : Alkalies|Insoluble in water|Organic solvents and decomposed by acids
- pH : >11 of a waterbased slurry
- Solubility in Water : Insoluble
- Solubility : Insoluble
- Screen Analysis : 1% oversized particles on 125 μm testing screen
- Physical form : Powder
- Phosphorescence Color : Green
- Particle Size Distribution : 37 μm
- Luminance DIN 67510-1 : 28 mcd/m2 after 10 min|3.1 mcd/m2 after 60 minutes|66 mcd/m2 after 5 minutes
- Density : 4.1 g/cm3
- Color : Yellow-green
- Chemical Composition : ZnS: Cu
- Brightness : 28 after 10 minutes|3.1 after 60 minutes|66 after 5 minutes
- Incompatible Materials : Strong acids
