Phosphorescent Pigments

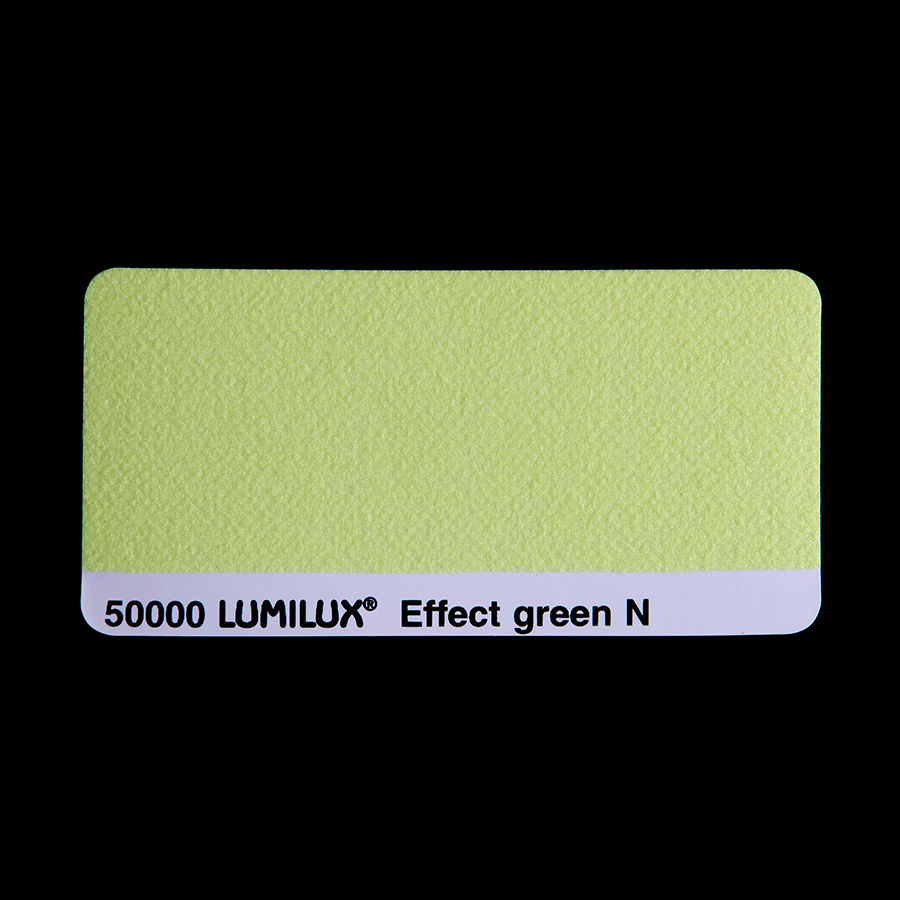

Lumilux® Effect Green N-E (50915)
Main use: Afterglow plastic sheets, screen printing inks, injection molding
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Lumilux N-series products are phosphorescent pigments that store energy when exposed to the sun or an artificial light source, and emit light long after the source has been removed. They are zinc sulfide-based, and meet UL and CE safety standards.
Typical Properties
General Information
- Application
- Enamels
- Glassware
- Plastics
- Screen inks
- Solvent-based paints
- Water-based paints
- Compatibility
- Insoluble in water, alkalies, organic solvents and decomposed by acids
- Concentration
- 100.00%
- Maximum Particle Size
- 54, PSD50
- Particle Texture/Size
- Very coarse (D50 >50 µm)
- Product Type
- Luminescent/Phosphorescent Pigments
- Typical Uses
- Buttons
- Sporting goods
- Textile printing
- Toys
Physical Properties
- Brightness
- 28 after 10 minutes
- 66 after 5 minutes
- Chemical Composition
- ZnS: Cu
- Color
- Yellow-green
- Density
- 4.1 g/cm3 at 20 °C
- Luminance DIN 67510-1
- 28 mcd/m2 after 10 minutes
- 66 mcd/m2 after 5 minutes
- Melting Point/Range
- > 1,500 °C
- Odor
- Odorless
- Particle Size Distribution
- 50 μm
- pH
- > 11 of a waterbased slurry
- Phosphorescence Color
- Green
- Physical form
- Powder
- Screen Analysis
- <1% oversized particles on 125 μm testing screen
- Solubility
- Insoluble
- Solubility in Water
- Insoluble
- Vapor Pressure
- No data available
Safety Information
- Chemical Stability
- Stable under recommended storage conditions
- Flammability
- Not flammable
- Incompatible Materials
- Strong acids
International Transportation
- Chemical Class
- N/A
- Packing Group
- N/A
General Information
- Application
- Enamels
- Glassware
- Plastics
- Screen inks
- Solvent-based paints
- Water-based paints
- Compatibility
- Insoluble in water, alkalies, organic solvents and decomposed by acids
- Concentration
- 100.00%
- Maximum Particle Size
- 54, PSD50
- Particle Texture/Size
- Very coarse (D50 >50 µm)
- Product Type
- Luminescent/Phosphorescent Pigments
- Typical Uses
- Buttons
- Sporting goods
- Textile printing
- Toys
Physical Properties
- Brightness
- 28 after 10 minutes
- 66 after 5 minutes
- Chemical Composition
- ZnS: Cu
- Color
- Yellow-green
- Density
- 4.1 g/cm3 at 20 °C
- Luminance DIN 67510-1
- 28 mcd/m2 after 10 minutes
- 66 mcd/m2 after 5 minutes
- Melting Point/Range
- > 1,500 °C
- Odor
- Odorless
- Particle Size Distribution
- 50 μm
- pH
- > 11 of a waterbased slurry
- Phosphorescence Color
- Green
- Physical form
- Powder
- Screen Analysis
- <1% oversized particles on 125 μm testing screen
- Solubility
- Insoluble
- Solubility in Water
- Insoluble
- Vapor Pressure
- No data available
Safety Information
- Chemical Stability
- Stable under recommended storage conditions
- Flammability
- Not flammable
- Incompatible Materials
- Strong acids
International Transportation
- Chemical Class
- N/A
- Packing Group
- N/A
- Application : Enamels|Glassware|Plastics|Screen inks|Solvent-based paints|Water-based paints
- Typical Uses : Buttons|Sporting goods|Textile printing|Toys
- Product Type : Luminescent/Phosphorescent Pigments
- Particle Texture/Size : Very coarse (D50 >50 µm)
- Maximum Particle Size : 54, PSD50
- Concentration : 100.00%
- Compatibility : Insoluble in water, alkalies, organic solvents and decomposed by acids
- pH : > 11 of a waterbased slurry
- Vapor Pressure : No data available
- Solubility in Water : Insoluble
- Solubility : Insoluble
- Screen Analysis : <1% oversized particles on 125 μm testing screen
- Physical form : Powder
- Phosphorescence Color : Green
- Particle Size Distribution : 50 μm
- Odor : Odorless
- Melting Point/Range : > 1,500 °C
- Luminance DIN 67510-1 : 28 mcd/m2 after 10 minutes|66 mcd/m2 after 5 minutes
- Density : 4.1 g/cm3 at 20 °C
- Color : Yellow-green
- Chemical Composition : ZnS: Cu
- Brightness : 28 after 10 minutes|66 after 5 minutes
- Incompatible Materials : Strong acids
- Flammability : Not flammable
- Chemical Stability : Stable under recommended storage conditions
- Packing Group : N/A
- Chemical Class : N/A
