Phosphorescent Pigments
Lumilux® Effect MB Green (50076)
Main use: plastic extrusion, injection moulding
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

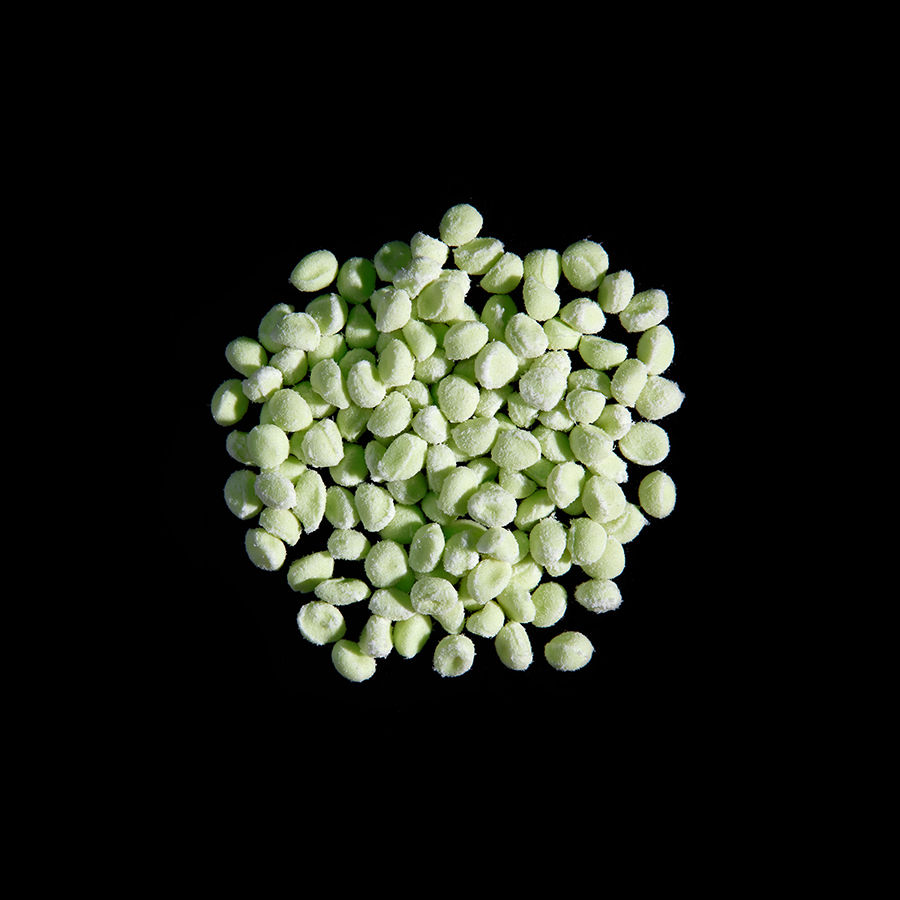

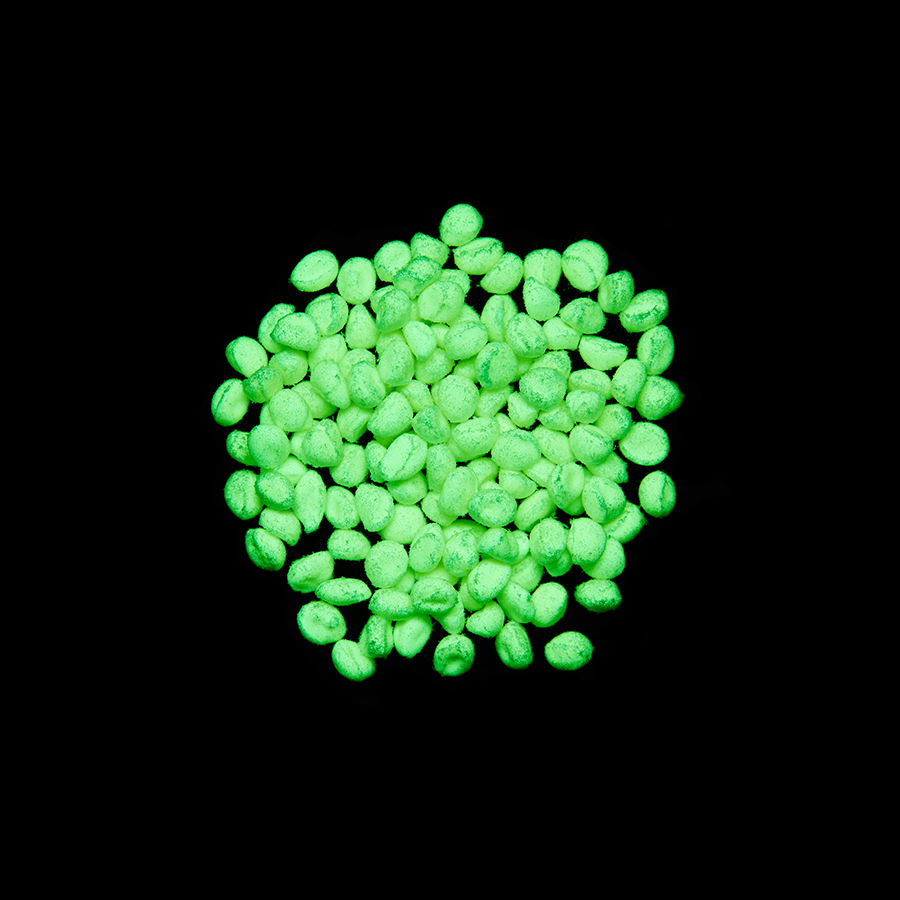

Lumilux N-series products are phosphorescent pigments that store energy when exposed to the sun or an artificial light source, and emit light long after the source has been removed. They are zinc sulfide-based, and meet UL and CE safety standards.
Specifications
Physical Properties
- Brightness
- 28 after 10 minutes
- 66 after 5 minutes
- Chemical Composition
- Pigment content - 80%
- Wax content - 20%
- Color
- Yellow-green
- Density
- N/A
- Luminance DIN 67510-1
- 28 mcd/m2 after 10 minutes
- 66 mcd/m2 after 5 minutes
- Melting Point/Range
- 35 - 90 °C
- Phosphorescence Color
- Green
- Physical form
- Granular
- Solubility in Water
- Insoluble
General Information
- Application
- Extrusion
- Injection Moulding
- Maximum Particle Size
- N/A
- Particle Texture/Size
- Coarse (D50 30 - 40 µm)
- Product Type
- Masterbatch
- Typical Uses
- Extrusion
- Injection Moulding
- Non Polar Plastics
- PVC Flexible
- PVC Rigid
- Polar plastics (PA/PC/PS)
Safety Information
- Incompatible Materials
- Acids
Physical Properties
- Brightness
- 28 after 10 minutes
- 66 after 5 minutes
- Chemical Composition
- Pigment content - 80%
- Wax content - 20%
- Color
- Yellow-green
- Density
- N/A
- Luminance DIN 67510-1
- 28 mcd/m2 after 10 minutes
- 66 mcd/m2 after 5 minutes
- Melting Point/Range
- 35 - 90 °C
- Phosphorescence Color
- Green
- Physical form
- Granular
- Solubility in Water
- Insoluble
General Information
- Application
- Extrusion
- Injection Moulding
- Maximum Particle Size
- N/A
- Particle Texture/Size
- Coarse (D50 30 - 40 µm)
- Product Type
- Masterbatch
- Typical Uses
- Extrusion
- Injection Moulding
- Non Polar Plastics
- PVC Flexible
- PVC Rigid
- Polar plastics (PA/PC/PS)
Safety Information
- Incompatible Materials
- Acids
- Luminance DIN 67510-1 : 28 mcd/m2 after 10 minutes|66 mcd/m2 after 5 minutes
- Particle Texture/Size : Coarse (D50 30 - 40 µm)
- Maximum Particle Size : N/A
- Typical Uses : Extrusion|Injection Moulding|Non Polar Plastics|PVC Flexible|PVC Rigid|Polar plastics (PA/PC/PS)
- Product Type : Masterbatch
- Application : Extrusion|Injection Moulding
- Phosphorescence Color : Green
- Chemical Composition : Pigment content - 80%|Wax content - 20%
- Solubility in Water : Insoluble
- Melting Point/Range : 35 - 90 °C
- Physical form : Granular
- Brightness : 28 after 10 minutes|66 after 5 minutes
- Density : N/A
- Color : Yellow-green
- Incompatible Materials : Acids
