Phosphorescent Pigments
Lumilux® Effect Red N (50037)

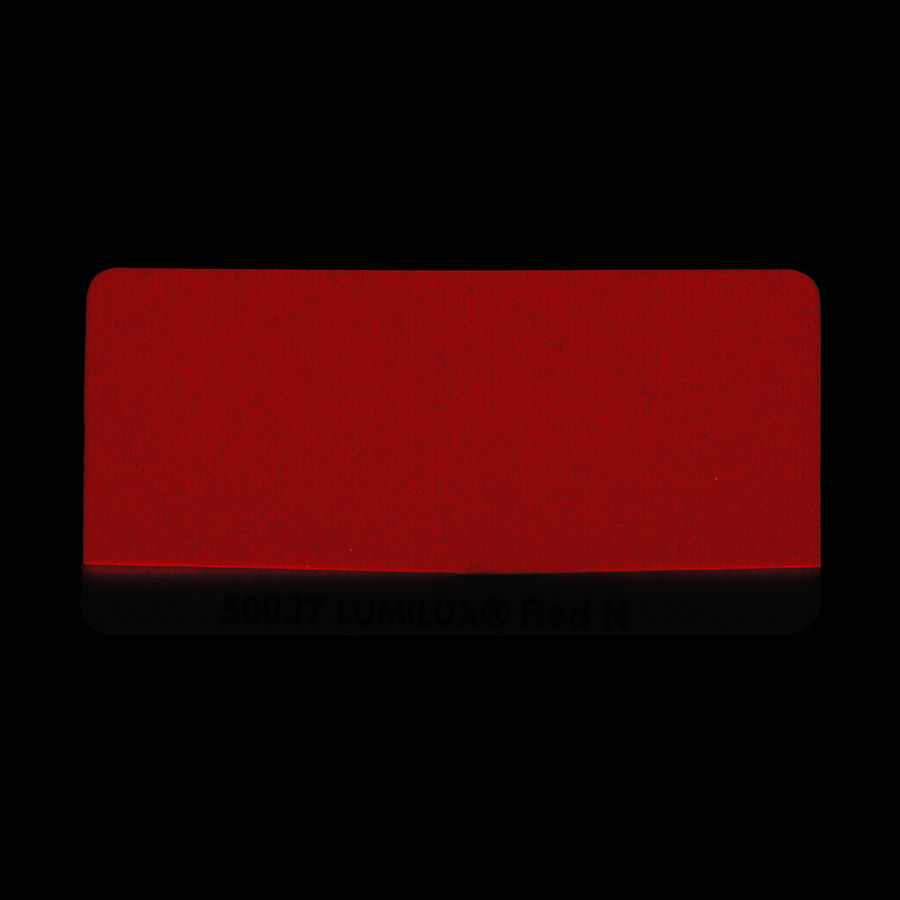

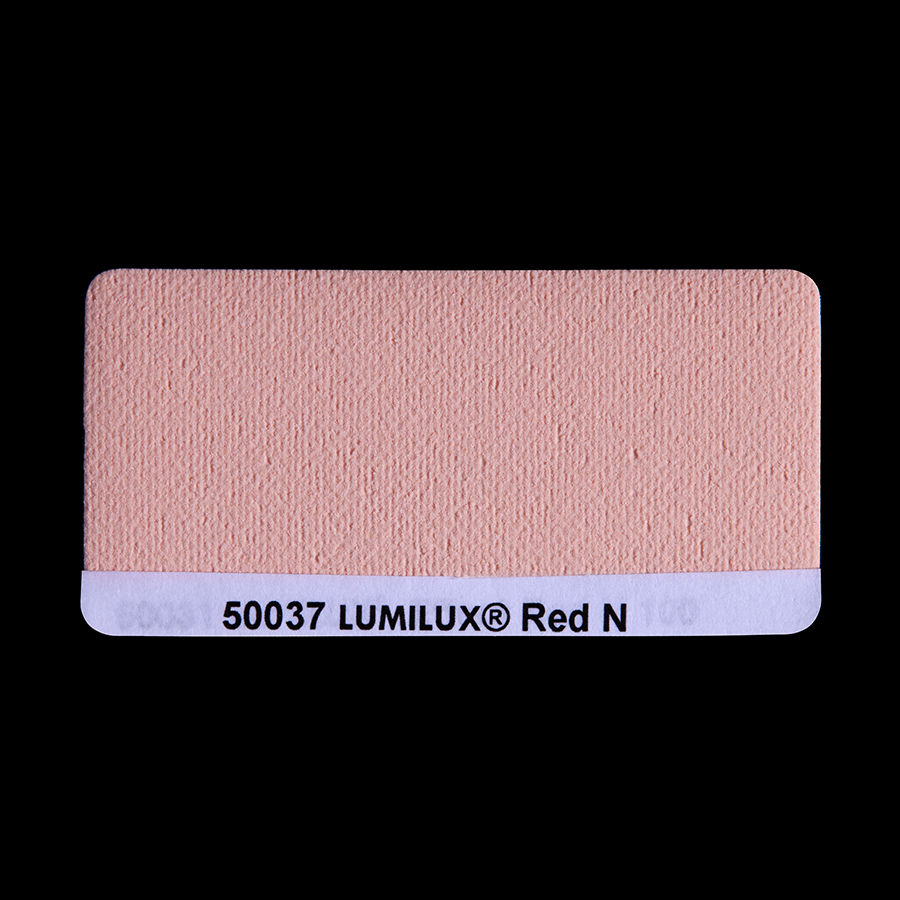

Calcium sulfide-based red fluorescent N series pigment; a distinctive pale-pink grade that produces a red afterglow effect.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
N-Series: The Original Glow That Never Sleeps.
The LUMILUX® N-Series phosphorescent pigments capture energy from daylight, room light or UV illumination and release it later as a visible glow. Based on proven zinc sulfide technology, the range offers quick charging, dependable afterglow and broad processing flexibility for inks, coatings, plastics and speciality products.
Available in different grades and particle sizes, the N-Series can be tailored for screen printing, injection moulding, paints and coatings. It supports safety signage, emergency guidance systems, low-light wayfinding graphics, toys, promotional items, decorative components and functional designs where trusted glow performance adds visibility, differentiation and lasting impact.
The LUMILUX® N-Series phosphorescent pigments capture energy from daylight, room light or UV illumination and release it later as a visible glow. Based on proven zinc sulfide technology, the range offers quick charging, dependable afterglow and broad processing flexibility for inks, coatings, plastics and speciality products.
Available in different grades and particle sizes, the N-Series can be tailored for screen printing, injection moulding, paints and coatings. It supports safety signage, emergency guidance systems, low-light wayfinding graphics, toys, promotional items, decorative components and functional designs where trusted glow performance adds visibility, differentiation and lasting impact.
Typical Properties
General Information
- Application
- Plastics
- Solvent-based paints
- Compatibility
- Insoluble in alkalies and decomposed by acids and water
- Maximum Particle Size
- 40, PSD50
- Particle Texture/Size
- Coarse (D50 30 - 40 µm)
- Typical Uses
- Buttons
- Sporting goods
- Toys
Physical Properties
- Brightness
- 12 after 5 minutes
- 4 after 10 minutes
- Chemical Composition
- CaS: Eu, Tm
- Color
- Pale Pink
- Density
- 2.5 g/cm3
- Luminance DIN 67510-1
- 0.3 mcd/m2 after 60 minutes
- 12.5 mcd/m2 after 5 minutes
- 4.8 mcd/m2 after 10 minutes
- Odor
- Sulfur
- Particle Size Distribution
- <40 µm
- pH
- 12 of a waterbased slurry
- Phosphorescence Color
- Red
- Physical form
- Powder
- Screen Analysis
- <0.5% oversized particles on 100 μm testing screen
- Solubility in Water
- Decomposes quickly in water liberating toxic hydronene sulfide
Safety Information
- Chemical Stability
- Decomposes quickly in water liberating toxic hydronene sulfide
- Incompatible Materials
- Acids
- Humidity
- Water
General Information
- Application
- Plastics
- Solvent-based paints
- Compatibility
- Insoluble in alkalies and decomposed by acids and water
- Maximum Particle Size
- 40, PSD50
- Particle Texture/Size
- Coarse (D50 30 - 40 µm)
- Typical Uses
- Buttons
- Sporting goods
- Toys
Physical Properties
- Brightness
- 12 after 5 minutes
- 4 after 10 minutes
- Chemical Composition
- CaS: Eu, Tm
- Color
- Pale Pink
- Density
- 2.5 g/cm3
- Luminance DIN 67510-1
- 0.3 mcd/m2 after 60 minutes
- 12.5 mcd/m2 after 5 minutes
- 4.8 mcd/m2 after 10 minutes
- Odor
- Sulfur
- Particle Size Distribution
- <40 µm
- pH
- 12 of a waterbased slurry
- Phosphorescence Color
- Red
- Physical form
- Powder
- Screen Analysis
- <0.5% oversized particles on 100 μm testing screen
- Solubility in Water
- Decomposes quickly in water liberating toxic hydronene sulfide
Safety Information
- Chemical Stability
- Decomposes quickly in water liberating toxic hydronene sulfide
- Incompatible Materials
- Acids
- Humidity
- Water
- Application : Plastics|Solvent-based paints
- Typical Uses : Buttons|Sporting goods|Toys
- Particle Texture/Size : Coarse (D50 30 - 40 µm)
- Maximum Particle Size : 40, PSD50
- Compatibility : Insoluble in alkalies and decomposed by acids and water
- pH : 12 of a waterbased slurry
- Solubility in Water : Decomposes quickly in water liberating toxic hydronene sulfide
- Screen Analysis : <0.5% oversized particles on 100 μm testing screen
- Physical form : Powder
- Phosphorescence Color : Red
- Particle Size Distribution : <40 µm
- Odor : Sulfur
- Luminance DIN 67510-1 : 0.3 mcd/m2 after 60 minutes|12.5 mcd/m2 after 5 minutes|4.8 mcd/m2 after 10 minutes
- Density : 2.5 g/cm3
- Color : Pale Pink
- Chemical Composition : CaS: Eu, Tm
- Brightness : 12 after 5 minutes|4 after 10 minutes
- Incompatible Materials : Acids|Humidity|Water
- Chemical Stability : Decomposes quickly in water liberating toxic hydronene sulfide
