Phosphorescent Pigments

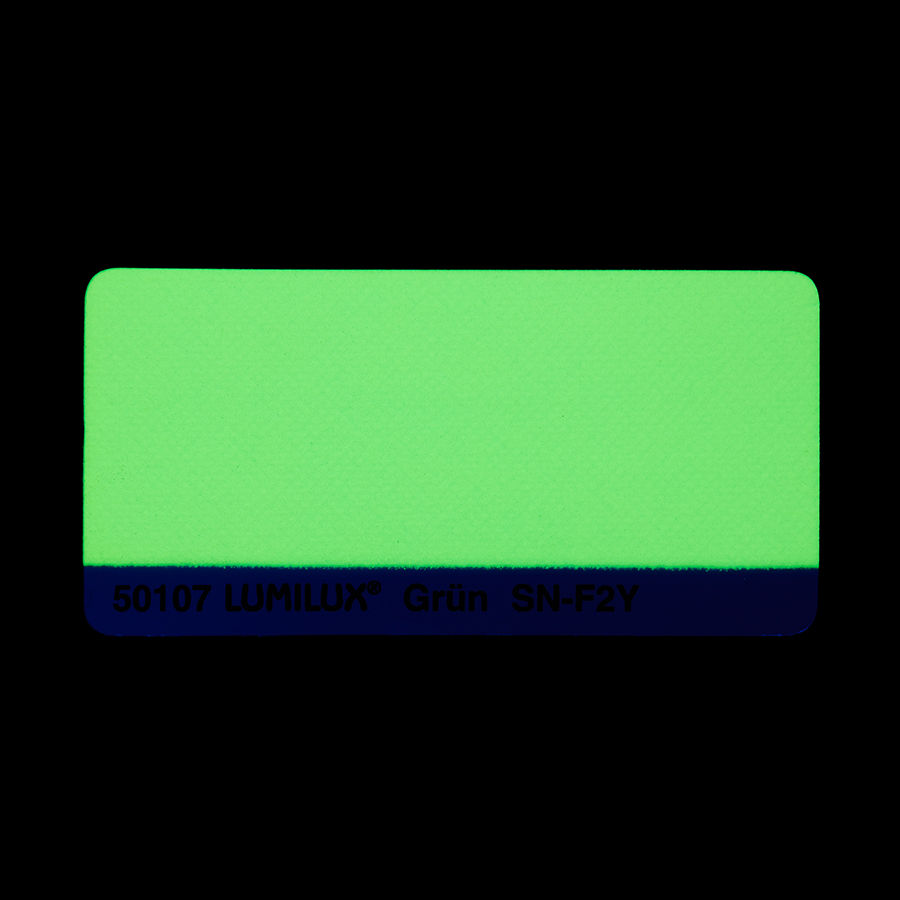

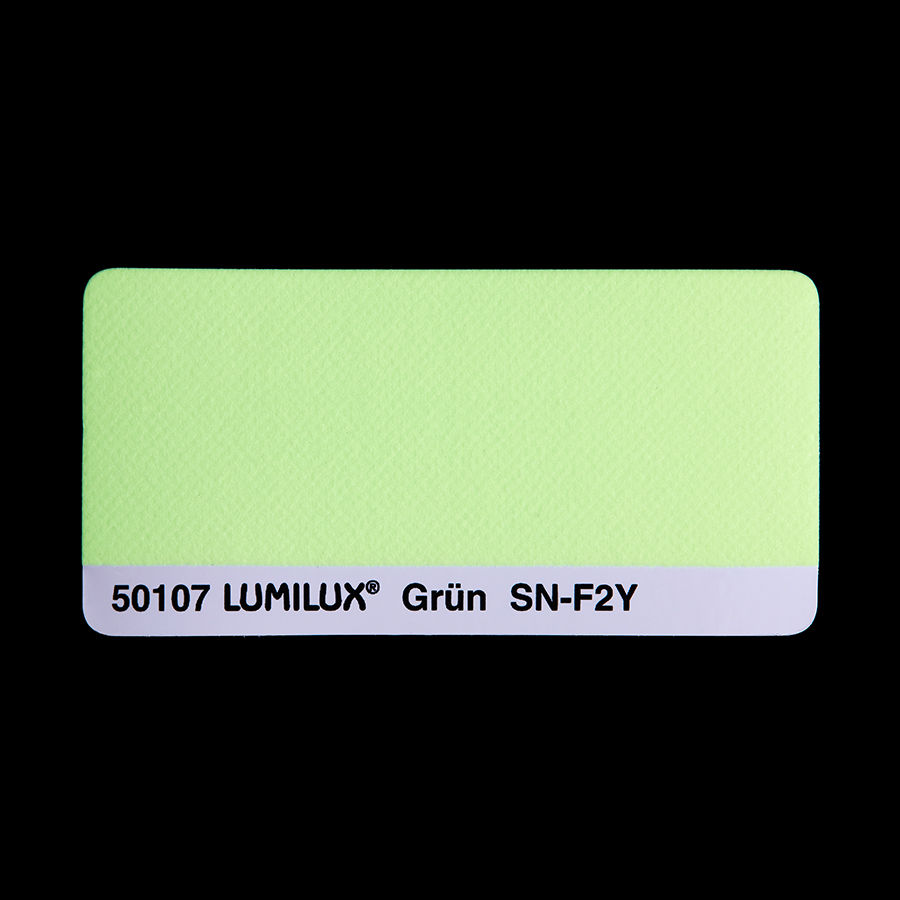

Lumilux® Green SN-F2Y (50107)
Main use: safety signs, long afterglow products according to DIN 67510 at low lightning conditions, plastic, screen printing inks
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Lumilux SN-series are phosphorescent pigments that store energy when exposed to the sun or an artificial light source, and emit light long after the source has been removed. They are strontium aluminate-based, which feature significantly higher initial brightness and longer afterglow periods than zinc-sulfide based products. They meet UL and CE safety standards.
Solstice Lumilux™ pigments have been a mainstay of the safety and security industry for more than four decades, consistently meeting the everchanging landscape of rigorous brightness standards required in safety, signage and authentication applications.
We offer the industry’s largest portfolio of phosphorescent and fluorescent pigments and taggants that can be used in a wide variety of applications, including:
• Safety and signage
• Automated sorting processes
• Watch dials
• Injection-molded toys and novelty items
• Paints and coatings
• Authentication applications
• Other specialty applications
Specifications
General Information
- Application
- PUR and epoxy resins
- Plastics
- Screen inks
- Solvent-based paints
- Compatibility
- Insoluble in alkalies, organic solvents and decomposed by acids and water
- Maximum Particle Size
- 28, PSD50
- Particle Texture/Size
- Middle (D50 20 - 30 µm)
- Product Type
- Luminescent/Phosphorescent Pigments
- Typical Uses
- Automotive trunk releases
- Fire brigade equipment
- Hard hats
- Safety signs
Physical Properties
- Brightness
- 25 after 60 minutes
- 260 after 10 minutes
- 550 after 5 minutes
- Chemical Composition
- Strontium Aluminate
- Color
- Yellowish
- Density
- 3.4 g/cm3
- Luminance DIN 67510-1
- 25 mcd/m2 after 60 minutes
- 260 mcd/m2 after 10 minutes
- 550 mcd/m2 after 5 minutes
- Particle Size Distribution
- 25.0μm
- Phosphorescence Color
- Green
- Physical form
- Powder
- Screen Analysis
- max. 1 % oversized particles on 125 μm testing screen
- Solubility
- Decomposes with water
- Solubility in Water
- Decomposition
Safety Information
- Chemical Stability
- Decomposes with water
- Incompatible Materials
- Acids
- Water
General Information
- Application
- PUR and epoxy resins
- Plastics
- Screen inks
- Solvent-based paints
- Compatibility
- Insoluble in alkalies, organic solvents and decomposed by acids and water
- Maximum Particle Size
- 28, PSD50
- Particle Texture/Size
- Middle (D50 20 - 30 µm)
- Product Type
- Luminescent/Phosphorescent Pigments
- Typical Uses
- Automotive trunk releases
- Fire brigade equipment
- Hard hats
- Safety signs
Physical Properties
- Brightness
- 25 after 60 minutes
- 260 after 10 minutes
- 550 after 5 minutes
- Chemical Composition
- Strontium Aluminate
- Color
- Yellowish
- Density
- 3.4 g/cm3
- Luminance DIN 67510-1
- 25 mcd/m2 after 60 minutes
- 260 mcd/m2 after 10 minutes
- 550 mcd/m2 after 5 minutes
- Particle Size Distribution
- 25.0μm
- Phosphorescence Color
- Green
- Physical form
- Powder
- Screen Analysis
- max. 1 % oversized particles on 125 μm testing screen
- Solubility
- Decomposes with water
- Solubility in Water
- Decomposition
Safety Information
- Chemical Stability
- Decomposes with water
- Incompatible Materials
- Acids
- Water
- Particle Texture/Size : Middle (D50 20 - 30 µm)
- Maximum Particle Size : 28, PSD50
- Compatibility : Insoluble in alkalies, organic solvents and decomposed by acids and water
- Typical Uses : Automotive trunk releases|Fire brigade equipment|Hard hats|Safety signs
- Product Type : Luminescent/Phosphorescent Pigments
- Application : PUR and epoxy resins|Plastics|Screen inks|Solvent-based paints
- Particle Size Distribution : 25.0μm
- Phosphorescence Color : Green
- Luminance DIN 67510-1 : 25 mcd/m2 after 60 minutes|260 mcd/m2 after 10 minutes|550 mcd/m2 after 5 minutes
- Chemical Composition : Strontium Aluminate
- Solubility in Water : Decomposition
- Screen Analysis : max. 1 % oversized particles on 125 μm testing screen
- Physical form : Powder
- Solubility : Decomposes with water
- Brightness : 25 after 60 minutes|260 after 10 minutes|550 after 5 minutes
- Density : 3.4 g/cm3
- Color : Yellowish
- Incompatible Materials : Acids|Water
- Chemical Stability : Decomposes with water
