Phosphorescent Pigments
Lumilux® Green SN-F5 (50105)
Alkaline earth aluminate-based ultra-fine green SN series pigment for high-detail applications.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
LUMILUX® SN Series: Light stored. Safety assured.

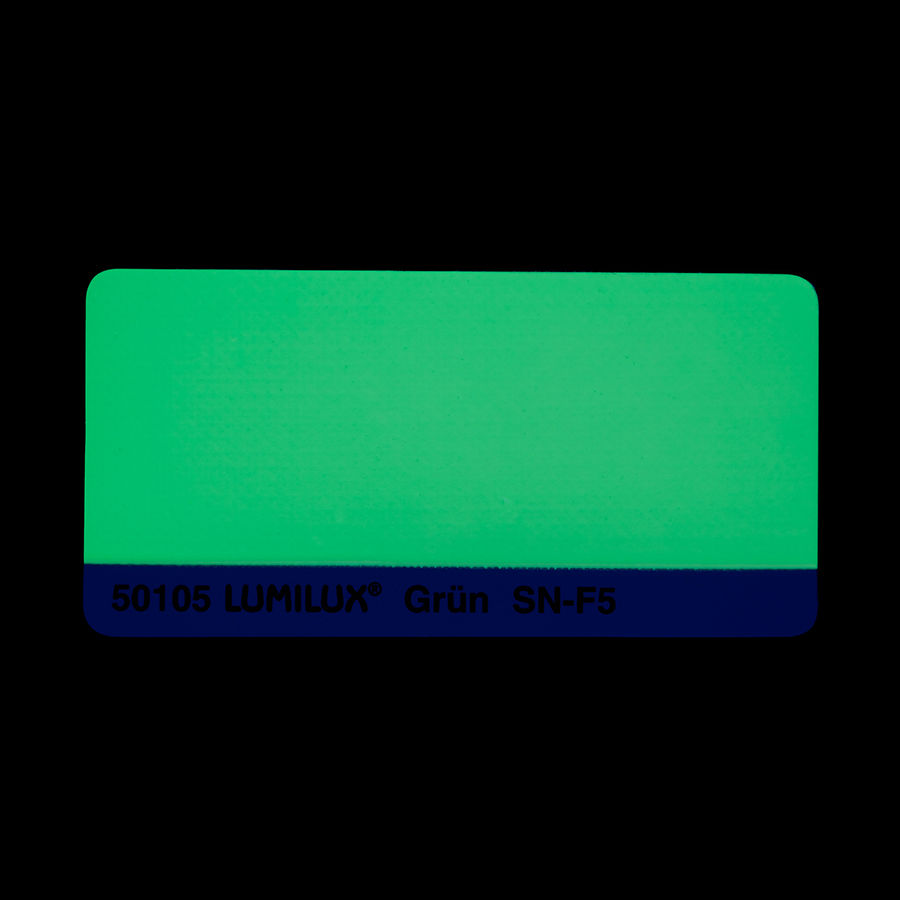

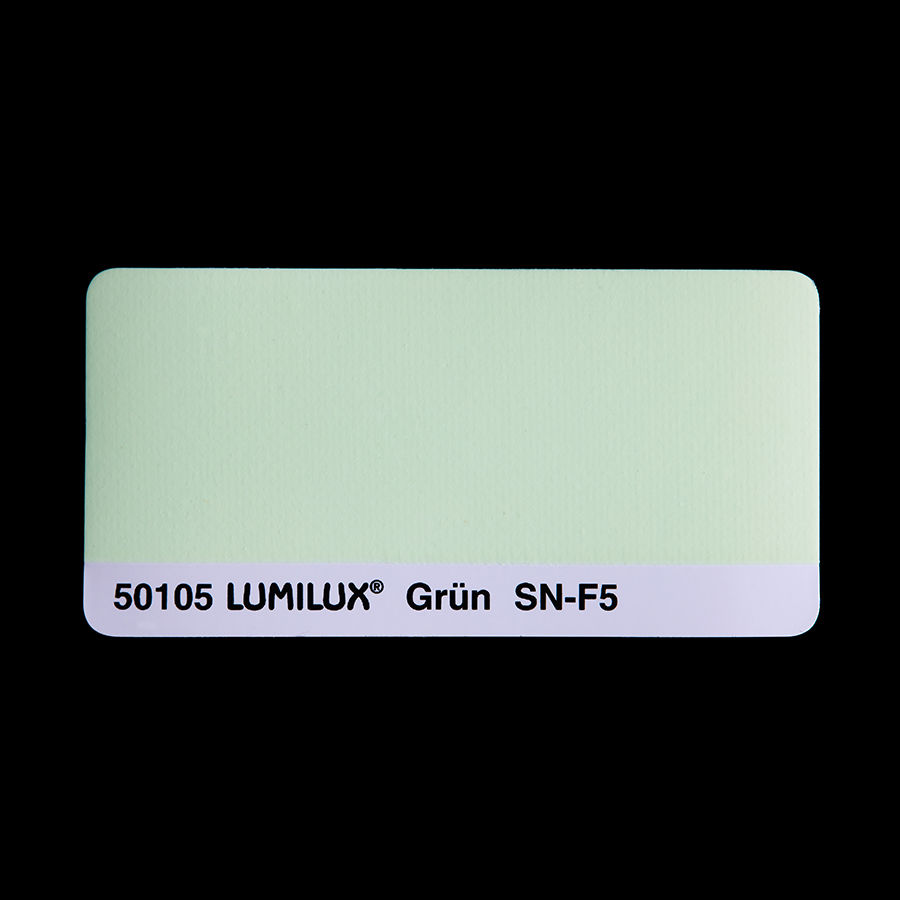

The LUMILUX® SN-Series uses advanced alkaline earth aluminate technology to deliver bright, long-lasting phosphorescent performance. It absorbs daylight, room light or UV energy efficiently and releases it slowly as a strong afterglow, providing high brightness, extended persistence and excellent stability where reliable visibility is essential.
Designed for safety, marking and creative design, the SN-Series supports wayfinding systems, emergency signage, premium watch dials, compass bezels, injection-moulded toys, novelty products, high-performance paints, coatings and speciality applications. Its durable glow effect helps transform functional surfaces and products into visible, engaging and dependable solutions.
The LUMILUX® SN-Series uses advanced alkaline earth aluminate technology to deliver bright, long-lasting phosphorescent performance. It absorbs daylight, room light or UV energy efficiently and releases it slowly as a strong afterglow, providing high brightness, extended persistence and excellent stability where reliable visibility is essential.
Designed for safety, marking and creative design, the SN-Series supports wayfinding systems, emergency signage, premium watch dials, compass bezels, injection-moulded toys, novelty products, high-performance paints, coatings and speciality applications. Its durable glow effect helps transform functional surfaces and products into visible, engaging and dependable solutions.
Typical Properties
General Information
- Application
- PUR and epoxy resins
- Plastics
- Screen inks
- Solvent-based paints
- Compatibility
- Decomposed by water and acids
- Insoluble in alkalies
- Insoluble in organic solvents
- Maximum Particle Size
- 6, PSD50
- Particle Texture/Size
- Fine (D50 < 20 µm)
- Product Type
- Luminescent/Phosphorescent Pigments
- Typical Uses
- Automotive trunk releases
- Fire brigade equipment
- Hard hats
- Safety signs
Physical Properties
- Brightness
- 12 after 60 minutes
- 180 after 5 minutes
- 90 after 10 minutes
- Chemical Composition
- Strontium Aluminate
- Color
- Off white
- Density
- 3.4 g/cm3
- Luminance DIN 67510-1
- 12 mcd/m2 after 60 minutes
- 180 mcd/m2 after 5 minutes
- 90 mcd/m2 after 10 minutes
- Particle Size Distribution
- 5.0μm
- Phosphorescence Color
- Yellowish Green
- Physical form
- Powder
- Screen Analysis
- max. 1 % oversized particles on 80 μm testing screen
- Solubility in Water
- Decomposes with water
Safety Information
- Chemical Stability
- Decomposes with water
- Incompatible Materials
- Acids
- Water
International Transportation
- Chemical Class
- No data available
General Information
- Application
- PUR and epoxy resins
- Plastics
- Screen inks
- Solvent-based paints
- Compatibility
- Decomposed by water and acids
- Insoluble in alkalies
- Insoluble in organic solvents
- Maximum Particle Size
- 6, PSD50
- Particle Texture/Size
- Fine (D50 < 20 µm)
- Product Type
- Luminescent/Phosphorescent Pigments
- Typical Uses
- Automotive trunk releases
- Fire brigade equipment
- Hard hats
- Safety signs
Physical Properties
- Brightness
- 12 after 60 minutes
- 180 after 5 minutes
- 90 after 10 minutes
- Chemical Composition
- Strontium Aluminate
- Color
- Off white
- Density
- 3.4 g/cm3
- Luminance DIN 67510-1
- 12 mcd/m2 after 60 minutes
- 180 mcd/m2 after 5 minutes
- 90 mcd/m2 after 10 minutes
- Particle Size Distribution
- 5.0μm
- Phosphorescence Color
- Yellowish Green
- Physical form
- Powder
- Screen Analysis
- max. 1 % oversized particles on 80 μm testing screen
- Solubility in Water
- Decomposes with water
Safety Information
- Chemical Stability
- Decomposes with water
- Incompatible Materials
- Acids
- Water
International Transportation
- Chemical Class
- No data available
- Application : PUR and epoxy resins|Plastics|Screen inks|Solvent-based paints
- Typical Uses : Automotive trunk releases|Fire brigade equipment|Hard hats|Safety signs
- Product Type : Luminescent/Phosphorescent Pigments
- Particle Texture/Size : Fine (D50 < 20 µm)
- Maximum Particle Size : 6, PSD50
- Compatibility : Decomposed by water and acids|Insoluble in alkalies|Insoluble in organic solvents
- Solubility in Water : Decomposes with water
- Screen Analysis : max. 1 % oversized particles on 80 μm testing screen
- Physical form : Powder
- Phosphorescence Color : Yellowish Green
- Particle Size Distribution : 5.0μm
- Luminance DIN 67510-1 : 12 mcd/m2 after 60 minutes|180 mcd/m2 after 5 minutes|90 mcd/m2 after 10 minutes
- Density : 3.4 g/cm3
- Color : Off white
- Chemical Composition : Strontium Aluminate
- Brightness : 12 after 60 minutes|180 after 5 minutes|90 after 10 minutes
- Incompatible Materials : Acids|Water
- Chemical Stability : Decomposes with water
- Chemical Class : No data available
