Phase Change Materials

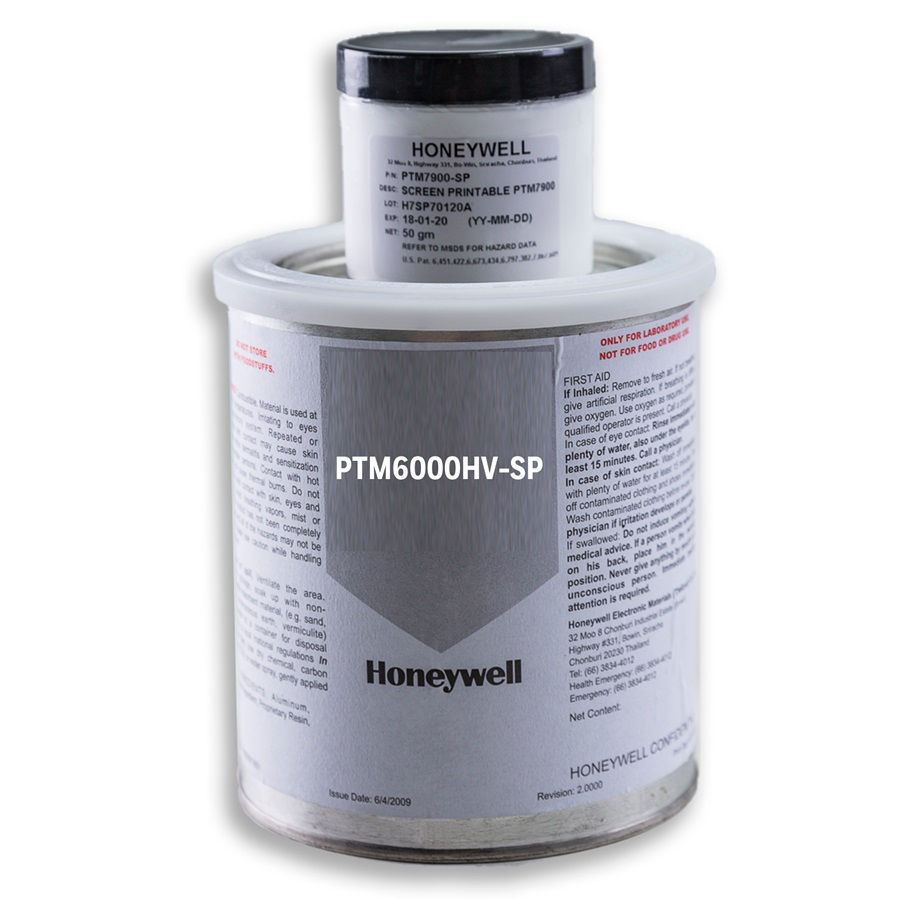

PTM6000HV-SP
PTM6000HV is a Phase Change Paste with a Thermal Impedance of 0.08 - 0.10 (°C cm²/w), Thermal Conductivity of 5.2 (w/mk) and Specific Gravity of 2.6 (g/cm³). The material is Optimized for IGBT printing and honeycomb structures.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
PTM6000HV is a highly thermally conductive Phase Change Material (PCM) in paste format. This high-viscosity (HV) version of PTM6000-SP is designed to minimize thermal resistance at interfaces and maintain extremely stable performance through reliability testing required for long product life applications. Its wide process window makes it an optimal, tailor-made option for IGBT printing and honeycomb structures.
PTM6000HV is based on a robust polymer PCM structure and exhibits excellent wetting properties at interfaces during typical operating temperature ranges, resulting in very low surface contact resistance.
PTM6000HV is a proprietary material that uses a proprietary filler to provide superior reliability (pass 150˚C baking 2000 hours, temperature cycling 2000 cycles, and HAST 288 hours) and maintains low thermal impedance (<0.12˚Ccm2/W no shim), making PTM6000HV desirable for high-performance integrated circuit devices.
PTM6000HV is based on a robust polymer PCM structure and exhibits excellent wetting properties at interfaces during typical operating temperature ranges, resulting in very low surface contact resistance.
PTM6000HV is a proprietary material that uses a proprietary filler to provide superior reliability (pass 150˚C baking 2000 hours, temperature cycling 2000 cycles, and HAST 288 hours) and maintains low thermal impedance (<0.12˚Ccm2/W no shim), making PTM6000HV desirable for high-performance integrated circuit devices.
Typical Properties
Physical Properties
- Bond-Line Thickness (BLT)
- 0.038
- Color
- Grey
- Shelf Life
- 12 months
- Specific Gravity
- 2.6 g/cm3, Test Method ASTM D374
- Viscosity
- 200-460
- Format
- Paste
- Stencil Printable
- Drying Type
- Extend
Thermal Properties
- Thermal Conductivity
- 5.2 W/m-K, Test Method ASTM D5470
- Thermal Impedance
- 0.08-0.10 at no shim °C cm²/w, Test Method ASTM D5470 Modified
General Information
- Application
- IGBT Module
- Thin Bondline
- Key Features
- High Reliability
- Sub-segment
- Solar Converter
- Industry
- Energy
Other
- Other Notes
- Stencil printable (SP) available in 300cc syringes or 1kg jars
Physical Properties
- Bond-Line Thickness (BLT)
- 0.038
- Color
- Grey
- Shelf Life
- 12 months
- Specific Gravity
- 2.6 g/cm3, Test Method ASTM D374
- Viscosity
- 200-460
- Format
- Paste
- Stencil Printable
- Drying Type
- Extend
Thermal Properties
- Thermal Conductivity
- 5.2 W/m-K, Test Method ASTM D5470
- Thermal Impedance
- 0.08-0.10 at no shim °C cm²/w, Test Method ASTM D5470 Modified
General Information
- Application
- IGBT Module
- Thin Bondline
- Key Features
- High Reliability
- Sub-segment
- Solar Converter
- Industry
- Energy
Other
- Other Notes
- Stencil printable (SP) available in 300cc syringes or 1kg jars
- Viscosity : 200-460
- Thermal Impedance : 0.08-0.10 at no shim °C cm²/w, Test Method ASTM D5470 Modified
- Thermal Conductivity : 5.2 W/m-K, Test Method ASTM D5470
- Specific Gravity : 2.6 g/cm3, Test Method ASTM D374
- Shelf Life : 12 months
- Format : Paste|Stencil Printable
- Drying Type : Extend
- Color : Grey
- Bond-Line Thickness (BLT) : 0.038
- Application : IGBT Module|Thin Bondline
- Sub-segment : Solar Converter
- Key Features : High Reliability
- Industry : Energy
- Other Notes : Stencil printable (SP) available in 300cc syringes or 1kg jars
