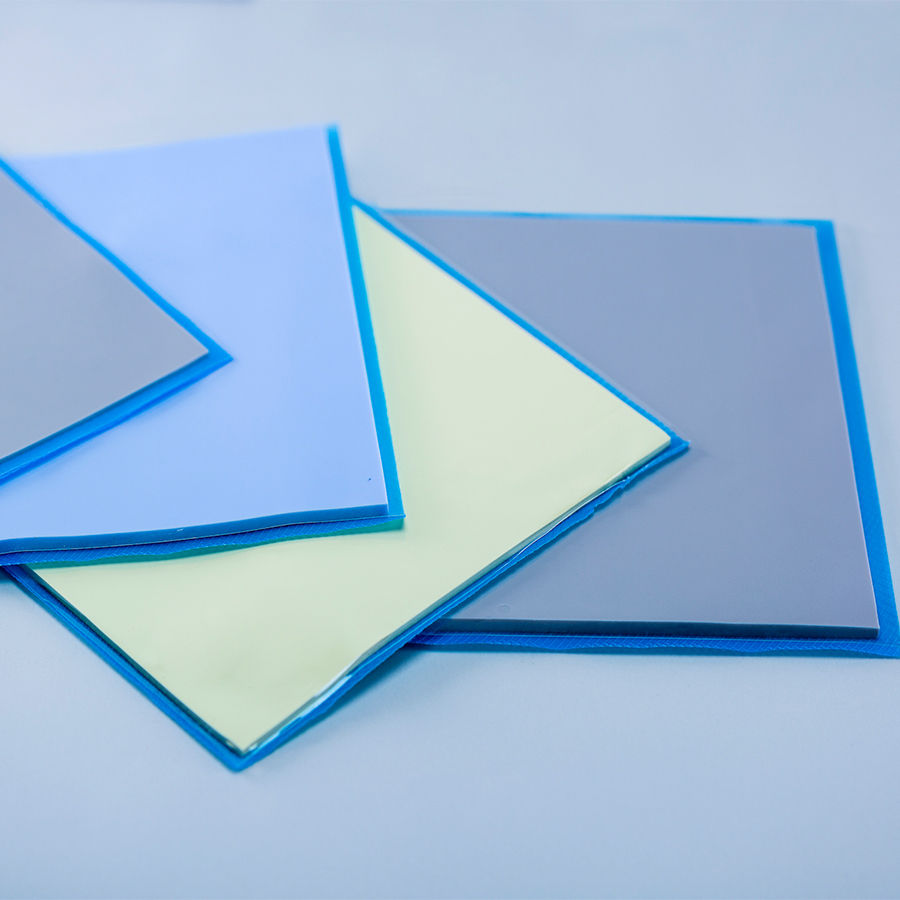

Thermal Putty Pads
TGP3500PT
Solstice Thermally Conductive Putty Pads TGPXXXXPT series enables excellent gap-filling capability for applications with large dimensional variances. (3.5 W/m·K, ultra soft pad)
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Solstice Thermally Conductive Putty Pads provide high thermal performance and solid thermal reliability. The material’s putty-like consistency enables excellent gap-filling capability for applications with large dimensional variances. Special surface reinforcement enables easier handling for operators, with no pull-out during high-volume assembly. The product is naturally tacky and requires no additional adhesive to mate to the heat source and heat sink.
Typical Applications
• EV battery & charging station
• Automotive electronics
• Power devices & modules
• Telecommunications & network servers
Features
• High thermal performance
• Ultra-soft
• High compressibility
• Excellent gap-filling capability
• Naturally tacky
Typical Applications
• EV battery & charging station
• Automotive electronics
• Power devices & modules
• Telecommunications & network servers
Features
• High thermal performance
• Ultra-soft
• High compressibility
• Excellent gap-filling capability
• Naturally tacky
Typical Properties
Physical Properties
- Color
- White
- Hardness
- 5 Shore00, Test Method ASTM D2240
- Shelf Life
- 12 months
- Specific Gravity
- 3.2, Test Method ASTM D792
- Thickness (mm)
- 0.5-5, Test Method ASTM D374
- Format
- Pad
Thermal Properties
- Thermal Conductivity
- 3.5 W/m-K, Test Method ASTM D5470
- Thermal Impedance
- 0.45 °C·in²/W, 1 mm at 10 psi, Typical Value, Test Method ASTM D5470
Electrical Properties
- Dielectric Constant
- 6.4 @ 1MHz, Test Method ASTM D150
- Volume Resistivity
- 4.0x10\u00B9\u00B3 ohm-cm, Test Method ASTM D257
Flammability Properties
- Flammability
- V-0, Test Method UL94
General Information
- Application
- CPU
- GPU
- Gap Filler
- High Compressibility
- Memory
- Key Features
- Extra Soft
- Typical Uses
- EV battery & charging station
- Power devices & modules
- Telecommunications & network servers
- Sub-segment
- Camera
- GPS
- Server
- Industry
- Consumer Electronics
- Technology and Telecommunications
Physical Properties
- Color
- White
- Hardness
- 5 Shore00, Test Method ASTM D2240
- Shelf Life
- 12 months
- Specific Gravity
- 3.2, Test Method ASTM D792
- Thickness (mm)
- 0.5-5, Test Method ASTM D374
- Format
- Pad
Thermal Properties
- Thermal Conductivity
- 3.5 W/m-K, Test Method ASTM D5470
- Thermal Impedance
- 0.45 °C·in²/W, 1 mm at 10 psi, Typical Value, Test Method ASTM D5470
Electrical Properties
- Dielectric Constant
- 6.4 @ 1MHz, Test Method ASTM D150
- Volume Resistivity
- 4.0x10\u00B9\u00B3 ohm-cm, Test Method ASTM D257
Flammability Properties
- Flammability
- V-0, Test Method UL94
General Information
- Application
- CPU
- GPU
- Gap Filler
- High Compressibility
- Memory
- Key Features
- Extra Soft
- Typical Uses
- EV battery & charging station
- Power devices & modules
- Telecommunications & network servers
- Sub-segment
- Camera
- GPS
- Server
- Industry
- Consumer Electronics
- Technology and Telecommunications
- Color : White
- Thermal Conductivity : 3.5 W/m-K, Test Method ASTM D5470
- Thermal Impedance : 0.45 °C·in²/W, 1 mm at 10 psi, Typical Value, Test Method ASTM D5470
- Specific Gravity : 3.2, Test Method ASTM D792
- Thickness (mm) : 0.5-5, Test Method ASTM D374
- Shelf Life : 12 months
- Hardness : 5 Shore00, Test Method ASTM D2240
- Format : Pad
- Dielectric Constant : 6.4 @ 1MHz, Test Method ASTM D150
- Volume Resistivity : 4.0x10\u00B9\u00B3 ohm-cm, Test Method ASTM D257
- Flammability : V-0, Test Method UL94
- Typical Uses : EV battery & charging station|Power devices & modules|Telecommunications & network servers
- Key Features : Extra Soft
- Sub-segment : Camera|GPS|Server
- Application : CPU|GPU|Gap Filler|High Compressibility|Memory
- Industry : Consumer Electronics|Technology and Telecommunications
