Phosphorescent Pigments

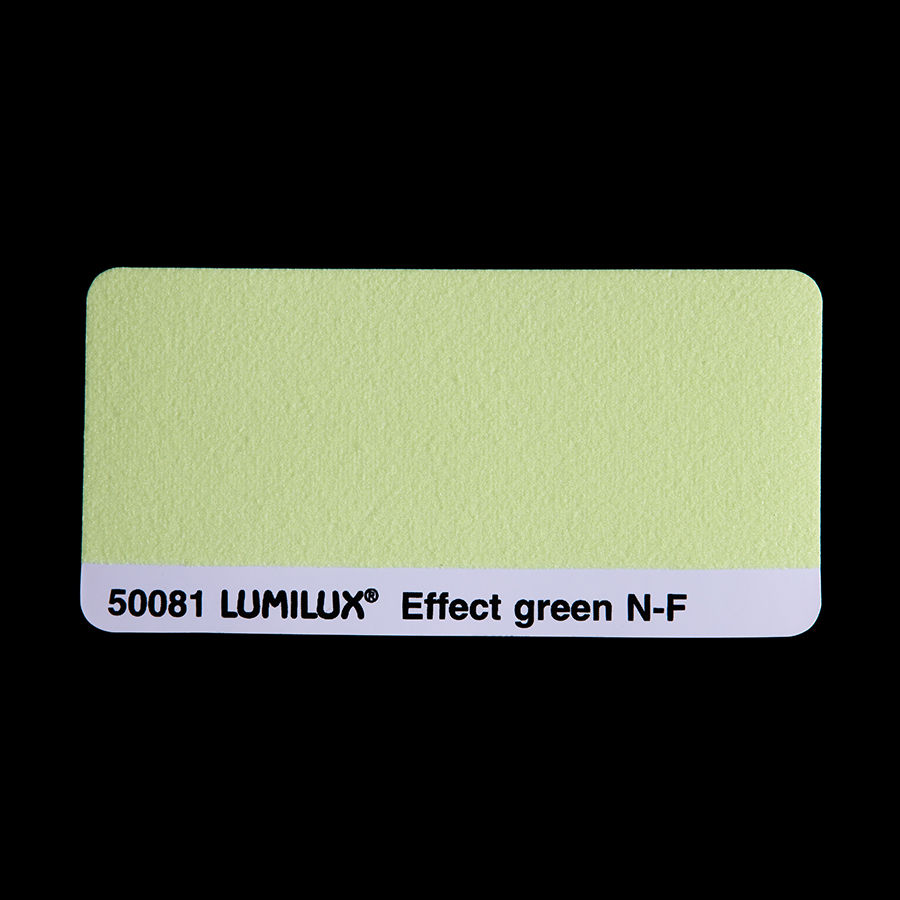

Lumilux® Effect Green N-F (50081)
Main use: Afterglow plastic sheets, screen printing inks, injection molding
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

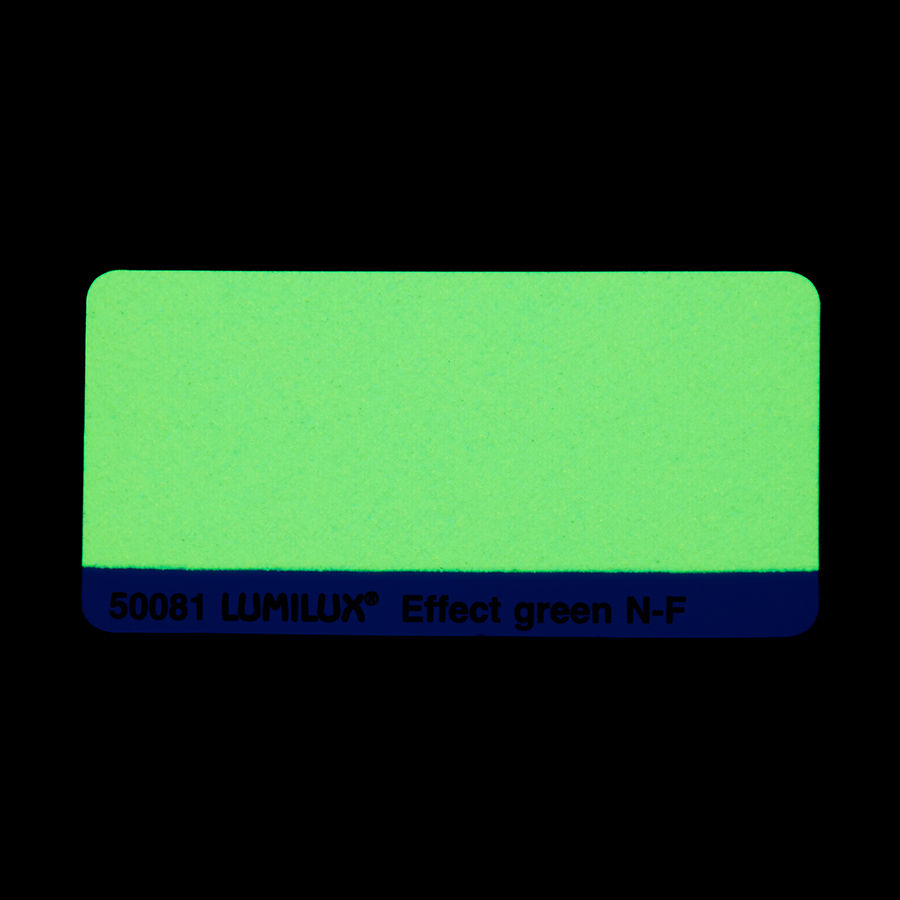

Lumilux N-series products are phosphorescent pigments that store energy when exposed to the sun or an artificial light source, and emit light long after the source has been removed. They are zinc sulfide-based, and meet UL and CE safety standards.
Specifications
General Information
- Application
- Enamels
- Glassware
- Plastics
- Screen inks
- Solvent-based paints
- Water-based paints
- Compatibility
- Insoluble in water, alkalies, organic solvents and decomposed by acids
- Maximum Particle Size
- 38, PSD50
- Particle Texture/Size
- Coarse (D50 30 - 40 µm)
- Product Type
- Luminescent/Phosphorescent Pigments
- Typical Uses
- Buttons
- Sporting goods
- Textile printing
- Toys
Physical Properties
- Brightness
- 27 after 10 minutes
- 64 after 5 minutes
- Chemical Composition
- ZnS: Cu
- Color
- Yellow-green
- Density
- 4.1 g/cm3
- Luminance DIN 67510-1
- 27 mcd/m2 after 10 minutes
- 64 mcd/m2 after 5 minutes
- Particle Size Distribution
- 30 μm
- pH
- > 11 of a waterbased slurry
- Phosphorescence Color
- Green
- Physical form
- Powder
- Screen Analysis
- < 0.5% oversized particles on 100 μm testing screen
- Solubility
- Insoluble
- Solubility in Water
- Insoluble
Safety Information
- Chemical Stability
- No data available
- Incompatible Materials
- Strong acids
International Transportation
- Chemical Class
- No data available
General Information
- Application
- Enamels
- Glassware
- Plastics
- Screen inks
- Solvent-based paints
- Water-based paints
- Compatibility
- Insoluble in water, alkalies, organic solvents and decomposed by acids
- Maximum Particle Size
- 38, PSD50
- Particle Texture/Size
- Coarse (D50 30 - 40 µm)
- Product Type
- Luminescent/Phosphorescent Pigments
- Typical Uses
- Buttons
- Sporting goods
- Textile printing
- Toys
Physical Properties
- Brightness
- 27 after 10 minutes
- 64 after 5 minutes
- Chemical Composition
- ZnS: Cu
- Color
- Yellow-green
- Density
- 4.1 g/cm3
- Luminance DIN 67510-1
- 27 mcd/m2 after 10 minutes
- 64 mcd/m2 after 5 minutes
- Particle Size Distribution
- 30 μm
- pH
- > 11 of a waterbased slurry
- Phosphorescence Color
- Green
- Physical form
- Powder
- Screen Analysis
- < 0.5% oversized particles on 100 μm testing screen
- Solubility
- Insoluble
- Solubility in Water
- Insoluble
Safety Information
- Chemical Stability
- No data available
- Incompatible Materials
- Strong acids
International Transportation
- Chemical Class
- No data available
- Application : Enamels|Glassware|Plastics|Screen inks|Solvent-based paints|Water-based paints
- Typical Uses : Buttons|Sporting goods|Textile printing|Toys
- Product Type : Luminescent/Phosphorescent Pigments
- Particle Texture/Size : Coarse (D50 30 - 40 µm)
- Maximum Particle Size : 38, PSD50
- Compatibility : Insoluble in water, alkalies, organic solvents and decomposed by acids
- pH : > 11 of a waterbased slurry
- Solubility in Water : Insoluble
- Solubility : Insoluble
- Screen Analysis : < 0.5% oversized particles on 100 μm testing screen
- Physical form : Powder
- Phosphorescence Color : Green
- Particle Size Distribution : 30 μm
- Luminance DIN 67510-1 : 27 mcd/m2 after 10 minutes|64 mcd/m2 after 5 minutes
- Density : 4.1 g/cm3
- Color : Yellow-green
- Chemical Composition : ZnS: Cu
- Brightness : 27 after 10 minutes|64 after 5 minutes
- Incompatible Materials : Strong acids
- Chemical Stability : No data available
- Chemical Class : No data available
