Solar Panel Film
HydroBlock® Solar 2000 Matte

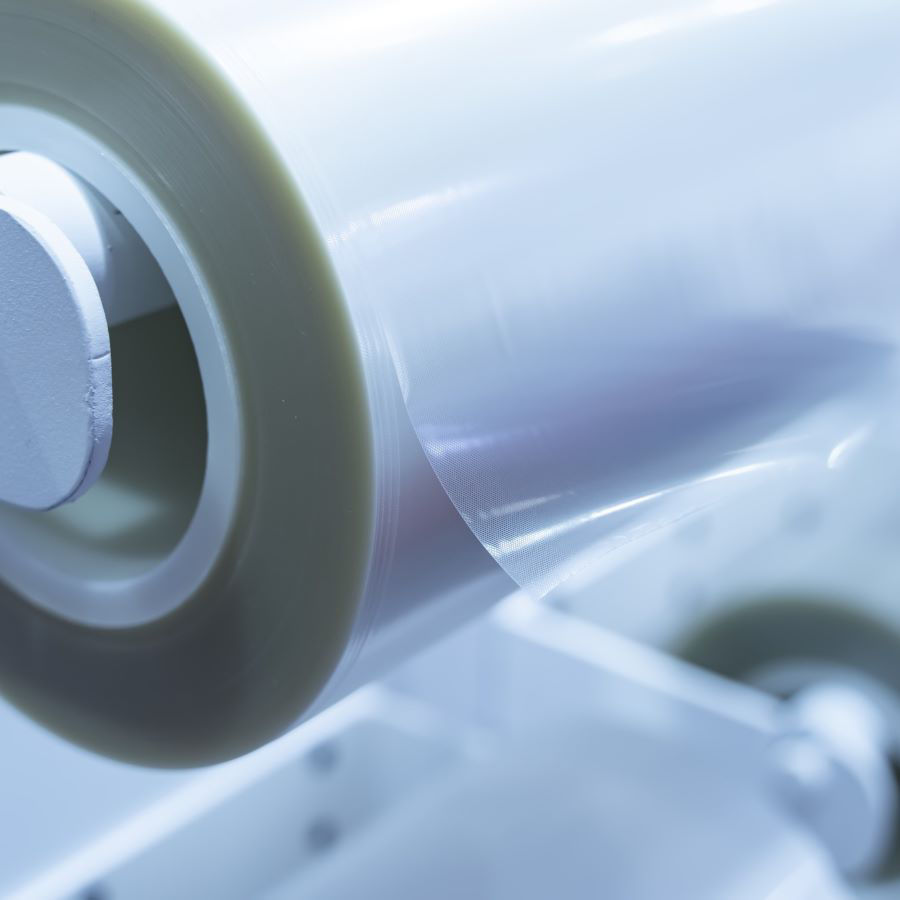

HydroBlock Solar 2000 Matte is a 2mil (51micron) PCTFE co-polymer ultra- high barrier film, with uniform matte finish on one side.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This inert and UV transparent high-performance film provides best in class moisture barrier against all climatic zones. Optically clear, it delivers exceptional moisture barrier performance across all climatic zones. Engineered with intention, designed for the future of photovoltaic demands.
Typical Properties
General Information
- Application
- Consumer Electronics
- Flexible PV & BIPV
- Low-earth Satellites
- Marine craft and recreational vehicles
- Wearables
- Performance Function
- UL yellow card listed
- UV stable and chemically inert
- Ultra-high moisture barrier
- Uniform matte finish
- Wide temperature tolerance
MD / TD
- Dimensional Stability
- + or - 2%
- Elongation
- 200-320%
Physical Properties
- Crystalline Melting Point
- 392 °F
- Water Vapor Transmission Rate
- 0.0037 gms/100in2/day
- Yield
- 8436 in2/lb
Sampling
- Sample Products
- Yes
General Information
- Application
- Consumer Electronics
- Flexible PV & BIPV
- Low-earth Satellites
- Marine craft and recreational vehicles
- Wearables
- Performance Function
- UL yellow card listed
- UV stable and chemically inert
- Ultra-high moisture barrier
- Uniform matte finish
- Wide temperature tolerance
MD / TD
- Dimensional Stability
- + or - 2%
- Elongation
- 200-320%
Physical Properties
- Crystalline Melting Point
- 392 °F
- Water Vapor Transmission Rate
- 0.0037 gms/100in2/day
- Yield
- 8436 in2/lb
Sampling
- Sample Products
- Yes
- Performance Function : UL yellow card listed|UV stable and chemically inert|Ultra-high moisture barrier|Uniform matte finish|Wide temperature tolerance
- Application : Consumer Electronics|Flexible PV & BIPV|Low-earth Satellites|Marine craft and recreational vehicles|Wearables
- Dimensional Stability : + or - 2%
- Elongation : 200-320%
- Yield : 8436 in2/lb
- Water Vapor Transmission Rate : 0.0037 gms/100in2/day
- Crystalline Melting Point : 392 °F
- Sample Products : Yes
